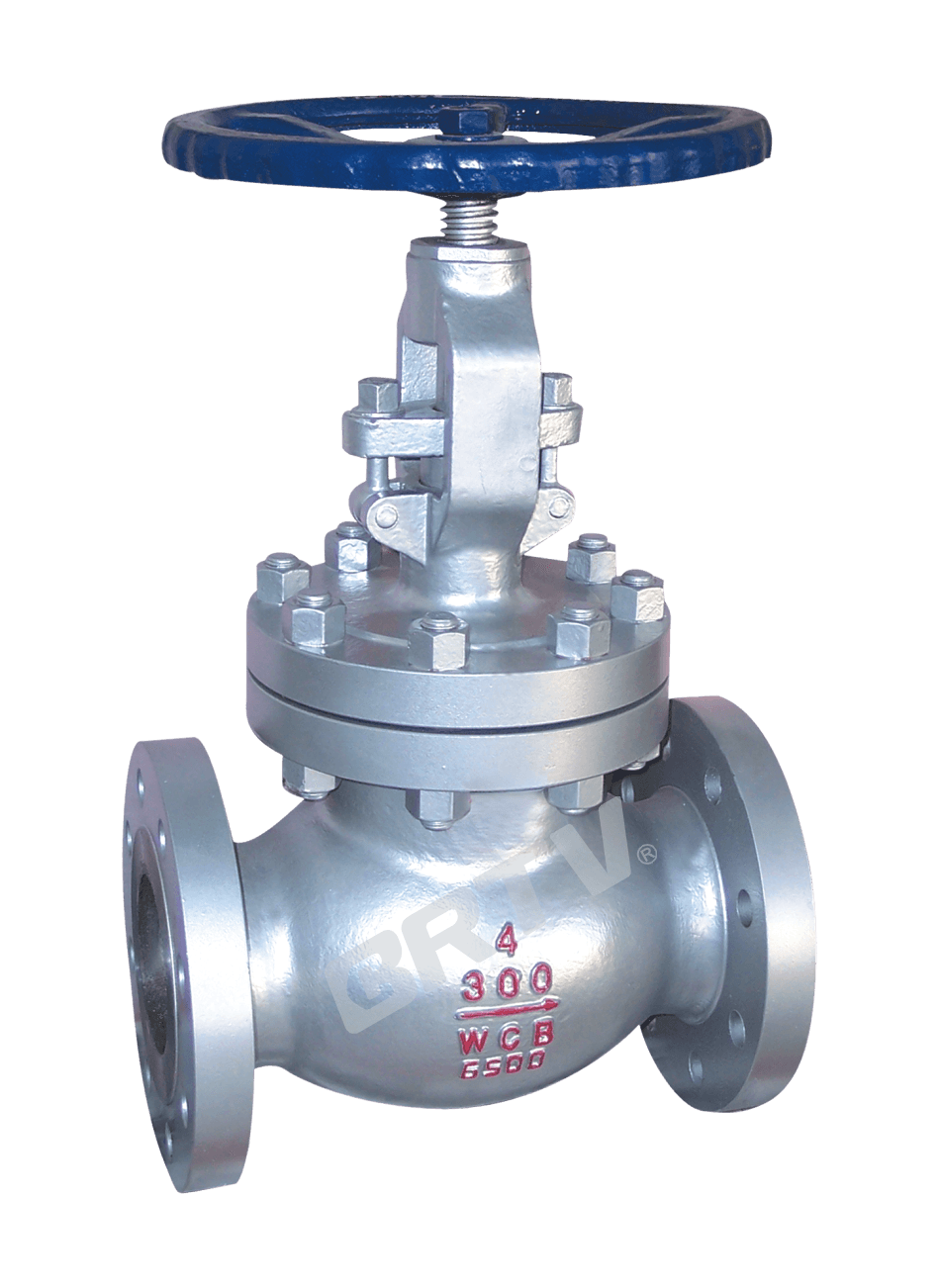

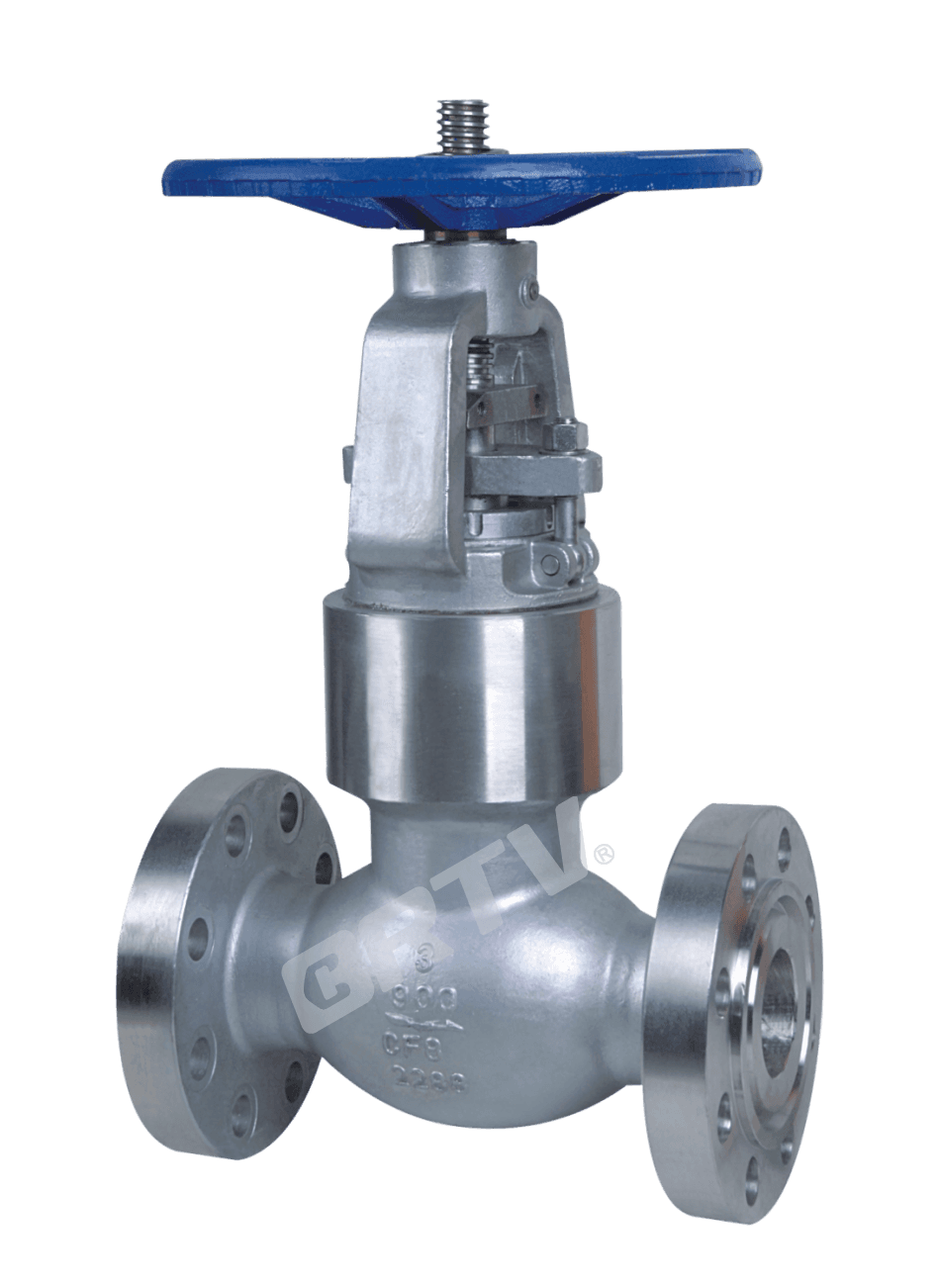

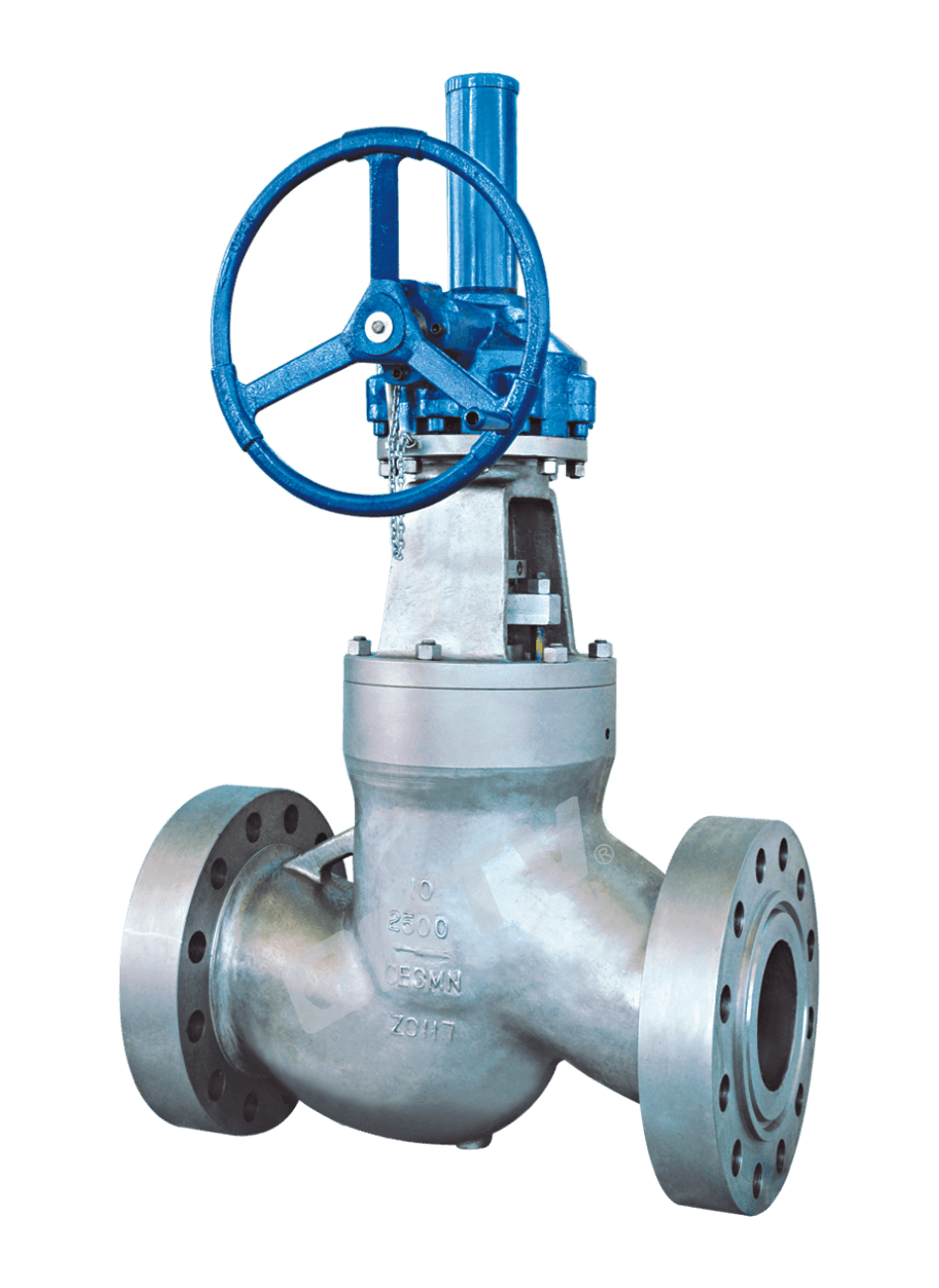

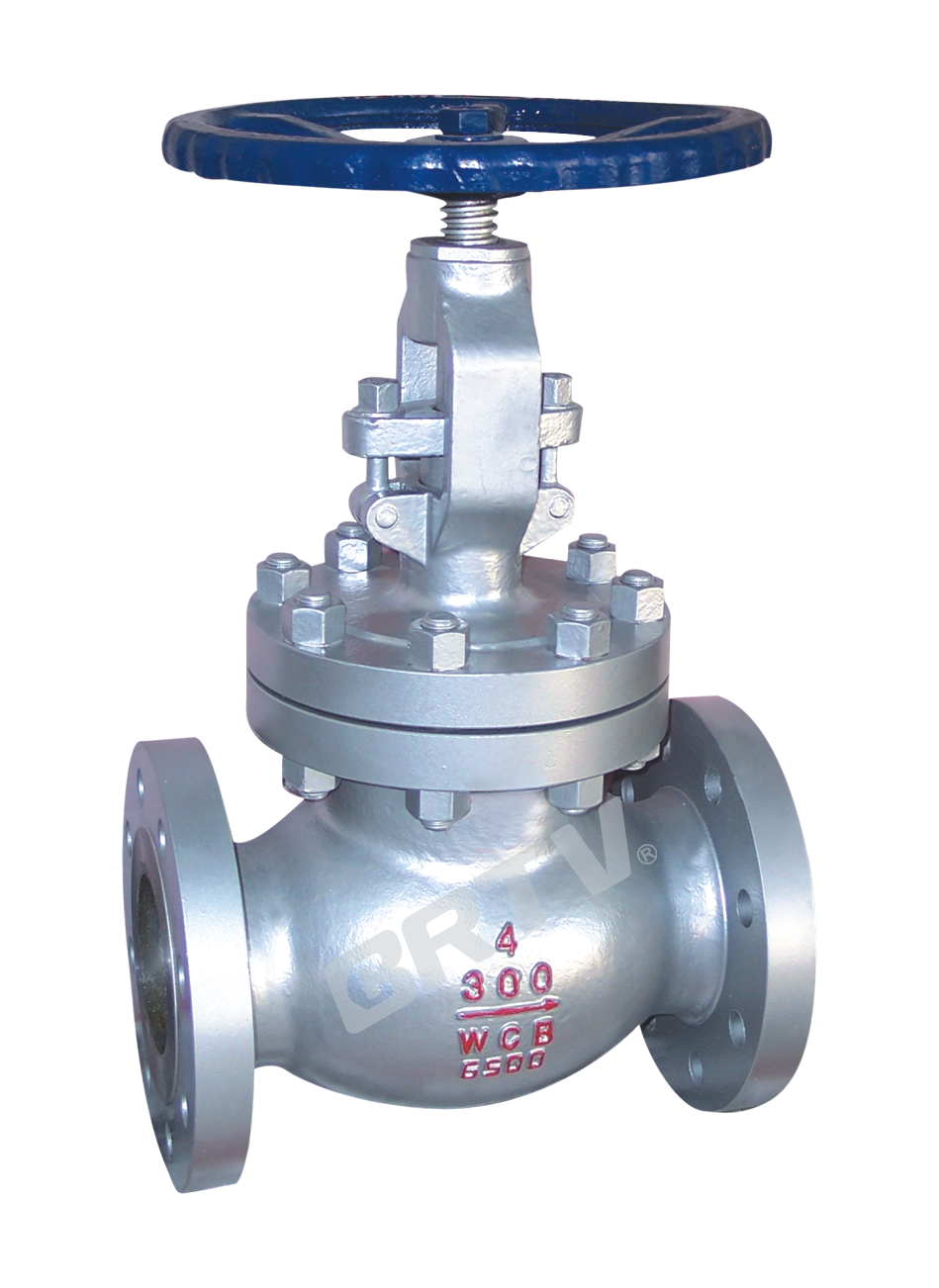

Globe valve are used to cut or connect the pipe media under nominal pressure between PN1.6 ~ 16.0MPa (Class150 ~ 2500), working temperatures ≤600℃, in oil industry, chemical industry, pharmaceuticals, fertilizer, and power industry.
| Design and Manufacture | ASME B16.34 / BS1873 |
|---|---|
| Face to Face / End to End | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Butt Welding Dimension | ASME B16.25 |
| Pressure Temperature Rating | ASME B16.34 |
| Inspection and Test | API 598 |
| Nominal Pressure (Class) | Shell Test (MPa) | Shell Test (lbf/in²) | Water Seal Test (MPa) | Water Seal Test (lbf/in²) | Air Seal Test (MPa) | Air Seal Test (lbf/in²) |
|---|---|---|---|---|---|---|
| 150 | 3.0 | 430 | 2.2 | 315 | 0.4–0.7 | 60–100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | 0.4–0.7 | 60–100 |
| 600 | 15.3 | 2220 | 11.3 | 1630 | 0.4–0.7 | 60–100 |
| 900 | 23.0 | 3330 | 17.0 | 2445 | 0.4–0.7 | 60–100 |
| 1500 | 38.4 | 5560 | 28.2 | 4080 | 0.4–0.7 | 60–100 |
| 2500 | 64.0 | 9255 | 47.0 | 6790 | 0.4–0.7 | 60–100 |
| Body Cover Disc | Stem | Sealing Face | Sealing Shim | Packing | Working Temperature | Suitable Medium |
|---|---|---|---|---|---|---|
| WCB | F6a | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤425°C | Water, Steam, Petroleum Products |
| WC1 | F6a | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤450°C | Water, Steam, Petroleum Products |
| WC6 | F21 / F22 | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤540°C | Water, Steam, Petroleum Products |
| WC9 | F21 / F22 | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤570°C | Water, Steam, Petroleum Products |
| C5 / C12 | F21 / F22 | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤540°C | Water, Steam, Petroleum Products |
| CF8 | F304 | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤200°C | Nitric Acid, Acetic Acid |
| CF3 | F304L | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤200°C | Nitric Acid, Acetic Acid |
| CF8M | F316 | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤200°C | Nitric Acid, Acetic Acid |
| CF3M | F316L | 13Cr STL / With Body Material / PTFE / Nylon | Enhanced Flexible Graphite / 13Cr / Flexible Graphite / SFB-2 / Soft Steel / F304 / F316 / F304L / F316L | Flexible Graphite / Enhanced Flexible Graphite / SFB260 / SPF260 / PTFE | ≤200°C | Nitric Acid, Acetic Acid |
RF Class 150LB (J41H / J41Y / J41W)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | n-Φd | H | Do |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 108 | 90 | 60.3 | 34.9 | 9.6 | 4-Φ16 | 241 | 100 |
| 20 | 3/4 | 117 | 100 | 69.9 | 42.9 | 11.2 | 4-Φ16 | 241 | 100 |
| 25 | 1 | 127 | 110 | 79.4 | 50.8 | 12.7 | 4-Φ16 | 242 | 125 |
| 32 | 1¼ | 140 | 115 | 88.9 | 63.5 | 14.3 | 4-Φ16 | 280 | 160 |
| 40 | 1½ | 165 | 125 | 98.4 | 73.0 | 15.9 | 4-Φ16 | 286 | 160 |
| 50 | 2 | 203 | 150 | 120.7 | 92.1 | 17.5 | 4-Φ19 | 368 | 200 |
| 65 | 2½ | 216 | 180 | 139.7 | 104.8 | 20.7 | 4-Φ19 | 387 | 200 |
| 80 | 3 | 241 | 190 | 152.4 | 127.0 | 22.3 | 4-Φ19 | 411 | 250 |
| 100 | 4 | 292 | 230 | 190.5 | 157.2 | 22.3 | 8-Φ19 | 454 | 250 |
| 125 | 5 | 356 | 255 | 215.9 | 185.7 | 22.3 | 8-Φ22.5 | 455 | 350 |
| 150 | 6 | 406 | 280 | 241.3 | 215.9 | 23.9 | 8-Φ22.5 | 541 | 350 |
| 200 | 8 | 495 | 345 | 298.5 | 269.9 | 27.0 | 8-Φ22.5 | 651 | 450 |
| 250 | 10 | 622 | 406 | 362.0 | 323.8 | 28.6 | 12-Φ25.4 | 800 | 450 |
| 300 | 12 | 698 | 485 | 431.8 | 381.0 | 30.2 | 12-Φ25.4 | 1231 | 600 |
| 350 | 14 | 787 | 535 | 476.3 | 412.8 | 33.4 | 12-Φ28.5 | 1450 | 600 |
| 400 | 16 | 914 | 595 | 539.8 | 469.9 | 35.0 | 16-Φ28.5 | 1645 | 600 |
RF Class 300LB (J41H / J41Y / J41W)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | n-Φd | H | Do |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 152 | 95 | 66.7 | 34.9 | 12.7 | 4-Φ16 | 241 | 140 |
| 20 | 3/4 | 178 | 115 | 82.6 | 42.9 | 14.3 | 4-Φ19 | 241 | 140 |
| 25 | 1 | 203 | 125 | 88.9 | 50.8 | 15.9 | 4-Φ19 | 283 | 160 |
| 32 | 1¼ | 216 | 135 | 98.4 | 63.5 | 17.5 | 4-Φ19 | 320 | 200 |
| 40 | 1½ | 229 | 155 | 114.3 | 73 | 19.1 | 4-Φ22.5 | 322 | 200 |
| 50 | 2 | 267 | 165 | 127 | 92.1 | 20.7 | 8-Φ19 | 399 | 200 |
| 65 | 2½ | 292 | 190 | 149.2 | 104.8 | 23.9 | 8-Φ22.5 | 438 | 250 |
| 80 | 3 | 318 | 210 | 168.3 | 127 | 27.0 | 8-Φ22.5 | 464 | 280 |
| 100 | 4 | 356 | 255 | 200 | 157.2 | 30.2 | 8-Φ22.5 | 565 | 350 |
| 125 | 5 | 400 | 280 | 235 | 185.7 | 33.4 | 8-Φ22.5 | 614 | 350 |
| 150 | 6 | 444 | 320 | 269.9 | 215.9 | 35.0 | 12-Φ22.5 | 717 | 400 |
| 200 | 8 | 559 | 380 | 330.2 | 269.9 | 39.7 | 12-Φ25.4 | 930 | 500 |
| 250 | 10 | 622 | 445 | 387.4 | 323.8 | 46.1 | 16-Φ28.5 | 1012 | 550 |
| 300 | 12 | 711 | 520 | 450.8 | 381.0 | 49.3 | 16-Φ32 | 1231 | 600 |
| 350 | 14 | 762 | 585 | 541.4 | 412.8 | 52.4 | 20-Φ32 | 1450 | 600 |
| 400 | 16 | 864 | 650 | 571.5 | 469.9 | 55.6 | 20-Φ35 | 1645 | 600 |
RF Class 600LB (J41H / J41Y / J41W)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | n-Φd | H | Do |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 2 | 292 | 165 | 127.0 | 92.1 | 25.4 | 8-Φ19 | 444 | 250 |
| 65 | 2½ | 330 | 190 | 149.2 | 104.8 | 28.6 | 8-Φ22.5 | 483 | 280 |
| 80 | 3 | 356 | 210 | 168.3 | 127.0 | 31.8 | 8-Φ22.5 | 533 | 320 |
| 100 | 4 | 432 | 275 | 215.9 | 157.2 | 38.1 | 8-Φ25.4 | 622 | 400 |
| 125 | 5 | 508 | 330 | 266.7 | 185.7 | 44.5 | 8-Φ28.5 | 750 | 450 |
| 150 | 6 | 559 | 355 | 292.1 | 215.9 | 47.7 | 12-Φ28.5 | 800 | 500 |
| 200 | 8 | 660 | 420 | 349.2 | 269.9 | 55.6 | 12-Φ32 | 927 | 550 |
| 250 | 10 | 787 | 510 | 431.8 | 323.8 | 63.5 | 16-Φ35 | 1257 | 600 |
RTJ Class 900LB (J41H / J41Y / J41W)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | n-Φd | H | Do |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 2 | 371 | 215 | 165.1 | 95.25 | 38.1 | 8-Φ25.4 | 569 | 320 |
| 65 | 2½ | 422 | 245 | 190.5 | 107.95 | 41.3 | 8-Φ28.5 | 569 | 320 |
| 80 | 3 | 384 | 240 | 190.5 | 123.83 | 38.1 | 8-Φ25.4 | 604 | 350 |
| 100 | 4 | 460 | 290 | 235.0 | 149.23 | 44.5 | 8-Φ32 | 708 | 450 |
| 125 | 5 | 562 | 350 | 279.4 | 180.98 | 50.8 | 8-Φ35 | 748 | 550 |
| 150 | 6 | 613 | 380 | 317.5 | 211.12 | 55.6 | 12-Φ32 | 890 | 600 |
| 200 | 8 | 740 | 470 | 393.7 | 269.88 | 63.5 | 12-Φ38 | 1240 | 700 |
| 250 | 10 | 841 | 545 | 469.9 | 323.85 | 69.9 | 16-Φ38 | 1651 | 700 |
RTJ Class 1500LB (J41H / J41Y / J41W)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | n-Φd | H | Do |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 2½ | 422 | 245 | 190.5 | 107.93 | 41.3 | 8-Φ28.5 | 461 | 400 |
| 80 | 3 | 473 | 265 | 203.2 | 136.53 | 47.7 | 8-Φ32 | 554 | 450 |
| 100 | 4 | 549 | 310 | 241.3 | 161.93 | 54.0 | 8-Φ35 | 639 | 500 |
| 125 | 5 | 676 | 375 | 292.1 | 193.68 | 73.1 | 8-Φ41 | 780 | 560 |
| 150 | 6 | 711 | 395 | 317.5 | 211.14 | 82.6 | 12-Φ38 | 904 | 630 |
| 200 | 8 | 841 | 485 | 393.7 | 269.88 | 92.1 | 12-Φ45 | 1140 | 680 |
Step 1: Order and Design
Confirm the technical specifications of the ASME globe valve based on the pressure rating, dimensions, material, and connection standards provided by the customer.
The engineering department completes drawing design, structural verification, and manufacturing process reviews in accordance with ASME, API, and relevant standards to ensure the valve meets the requirements of the operating conditions.
Step 2: Forging & Casting
Select appropriate raw materials according to order specifications, and perform forging or precision casting on major components such as the valve body, bonnet, and disc.
Pressure-bearing components of the ASME globe valve undergo heat treatment and blank inspection after forming to ensure dense internal structure and stable mechanical properties.
Step 3: Machining
Precision machining is performed on the valve body flange surfaces, sealing surfaces, stem threads, and seat mating surfaces.
This stage is a critical step in the manufacturing of ASME globe valves, directly affecting sealing performance, operational flexibility, and dimensional accuracy.
Step 4: Assembly
Machined and inspected parts are cleaned, matched, and assembled, including components such as the valve stem, disc, bonnet, packing, and handwheel.
During assembly, coaxiality, sealing surface contact, and operating torque must be strictly controlled to ensure the ASME globe valve operates smoothly and reliably.
Step 5: Testing & Quality Assurance
After assembly, the ASME globe valve undergoes shell strength testing, sealing tests, and necessary air tightness tests. Appearance, dimensions, and markings are inspected according to standards.
The quality department simultaneously verifies material reports, heat treatment records, and inspection documents to ensure the product meets factory release requirements.
Step 6: Painting and Finishing
After passing the pressure test, the valve surface is cleaned, treated with rust prevention, painted, and the nameplate is affixed.
Finally, packaging, protective measures, and warehousing are completed to ensure the product remains in good condition during transportation and delivery.
Primarily used in high-temperature, high-pressure piping systems in thermal power plants, petrochemical plants, and other industries, these valves control the flow of non-corrosive media such as water and steam.
