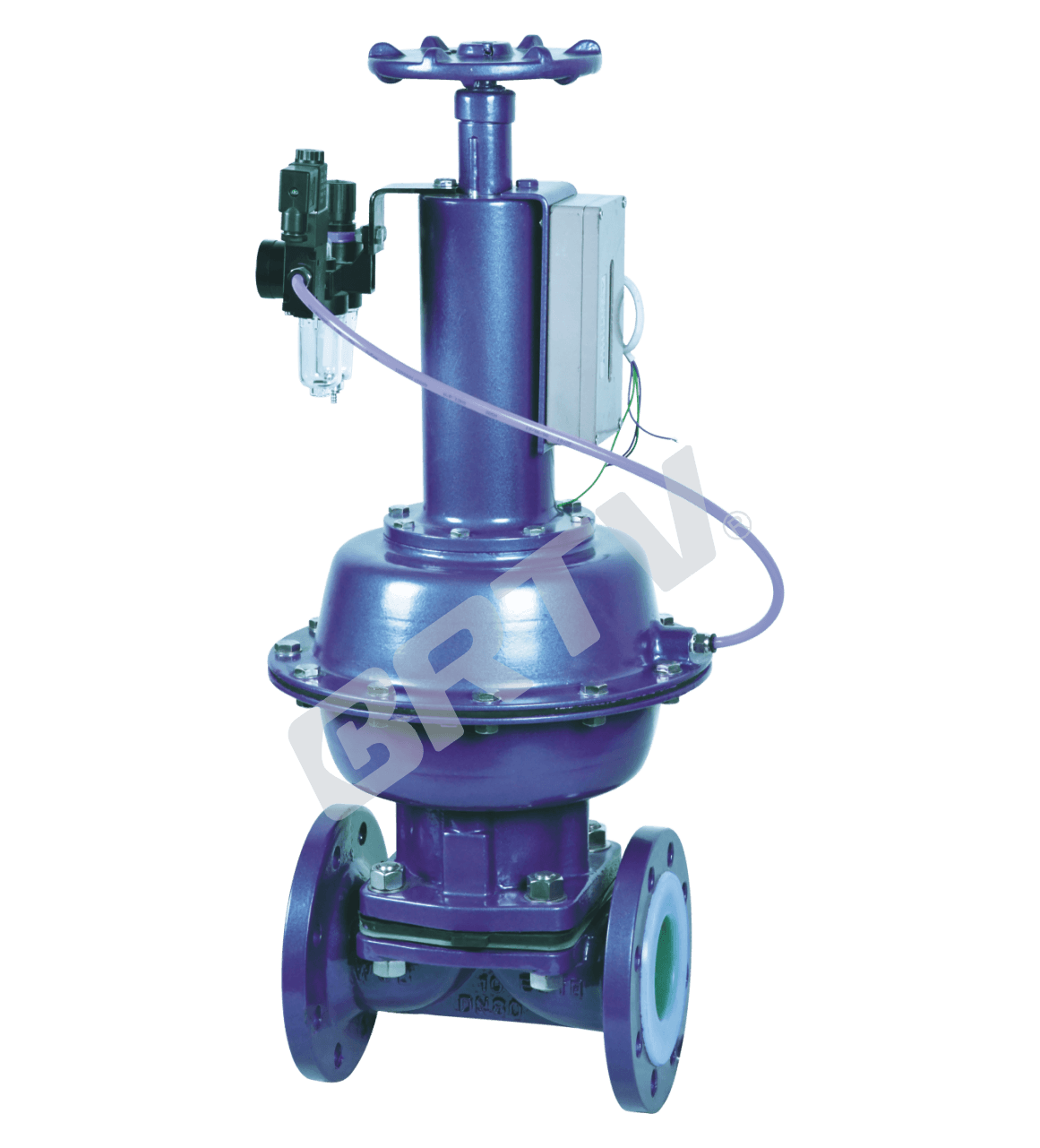

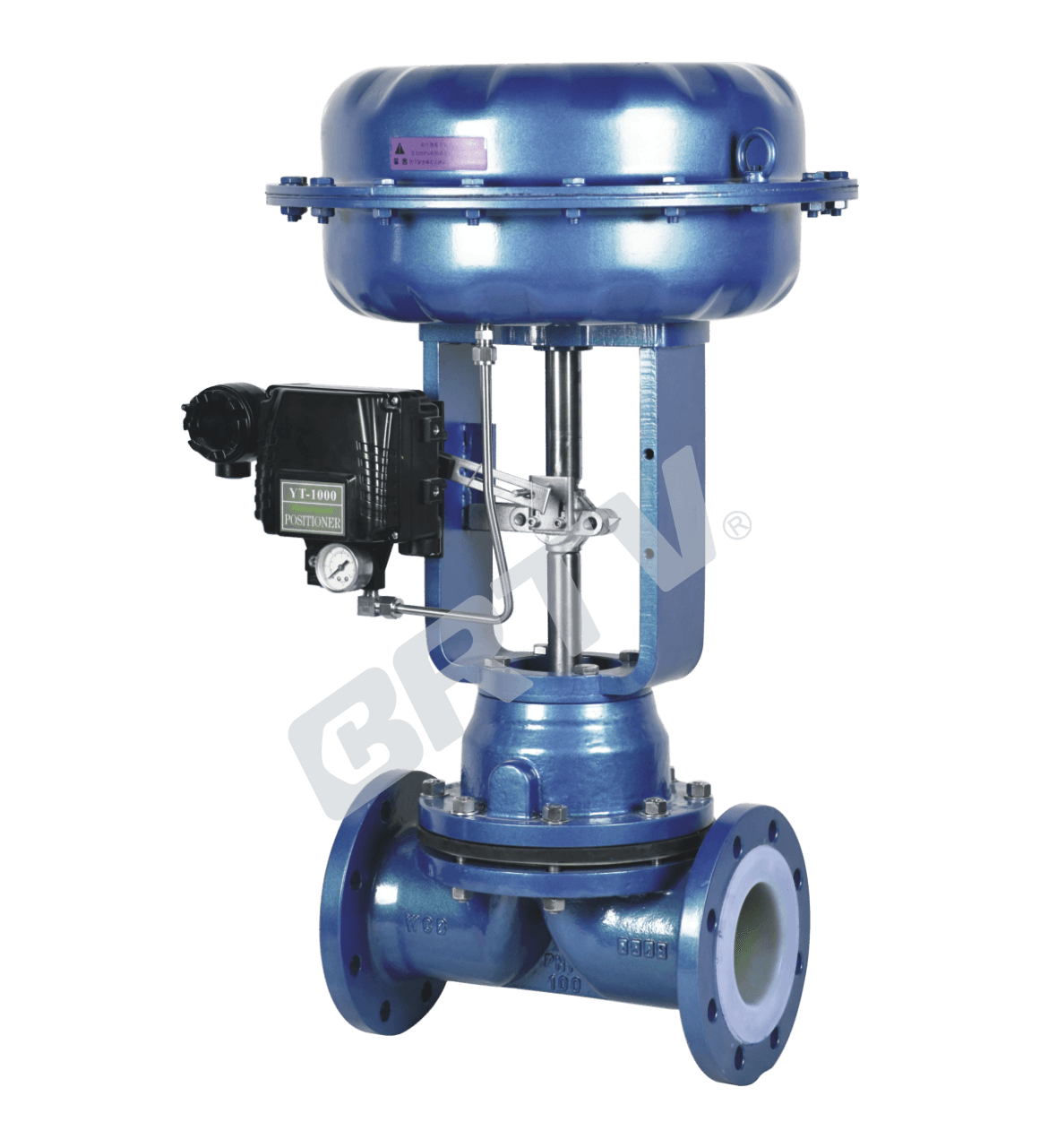

Diaphragm valve is a special form of valve with truncation function, its opening and closing parts composed of a diaphragm of steel disc and a soft material (rubber and fluoroplastic compound). The inner cavity of the valve body is separated from the inner cavity of the valve cover to cut off the medium in the pipe.
The basic series of diaphragm valve includes G41F46 weir–type, EG41F46 weir–type, and G45F46 straight flow type. Its features are as follows:
1.The composite diaphragm separates the lower body chamber from the bonnet chamber and forms a direct current channel with it, which can completely isolate the upper part of the diaphragm stem, disc and other internal parts and media, saves seal packing, avoids internal leakage and external leakage of the medium at the same time.
2.The diaphragm is composed of FEP (Teflon) fluoroplastic and synthetic rubber. The valve is with lined (Teflon) fluoroplastic. Both of them are suitable for a variety of highly corrosive media except for "molten alkali metals and elements".
3.As the diaphragm of the actuator, it is prone to fatigue fracture due to frequent opening and closing. The diaphragm shall be replaced periodically in terms of test condition, medium and characteristics.
4.As for the corrosion resistance and recommended temperature, please refer to the "fluorine for valve and pipeline accessories" and "lined fluoroplastics performance sheet".
| Design and Manufacture | GB/T 12239 |
|---|---|
| Structure Length | GB/T 12221, HG/T 37004 |
| Flange Dimensions | HG/T 20592 |
| Pressure Test | GB/T 13927 |
| Mark | GB/T 12220 |
| Supply | GB/T 12252 |
| Manual (Type) | Manual (Type) | Electric (Type) |
|---|---|---|
| G41F3 (weir type) | G641F3 (reciprocating) | G9B41F3 (explosion-proof) |
| G41F46 (weir type) | G641F46 (reciprocating) | G9B41F46 (explosion-proof) |
| G45F3 (straight flow type) | G6B41F3 (normally closed) | G941F3 (standard type) |
| G45F46 (straight flow type) | G6B41F46 (normally closed) | G941F46 (standard type) |
| Components | Gray Cast Iron (Z) | Carbon Steel (C) | Stainless Steel (P) | Stainless Steel (R) | Ultra-low Carbon Stainless Steel (RL) | Ultra-low Carbon Stainless Steel (RL) |
|---|---|---|---|---|---|---|
| Body, Cover, Disc | HT250 | WCB | CF8 | CF8M | CF3 | CF3M |
| Stem | 35 | 1Cr13 | 1Cr18Ni9 | 1Cr18Ni12Mo2Ti | 00Cr18Ni10 | 00Cr17Ni14Mo2 |
| Lining | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) | FEP (F46), PFA, PCTFE (F3), PO (Polyolefin) |
| Diaphragm | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) | FEP (F46)/CR (Chloroprene Rubber), PFA/FPM (Fluororubber) |
| Stem Nut | ZCuAl10Fe3 | ZCuAl10Fe3 | ZCuAl10Fe3 | ZCuAl10Fe3 | ZCuAl10Fe3 | ZCuAl10Fe3 |
| Bolt | 35 | 35 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni9Ti |
| Nut | 45 | 45 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 |
| Handwheel | HT200 | HT200 | WCC | WCC | WCC | WCC |
ZTG641F(F4/F46)-PN10(1.0MPa)

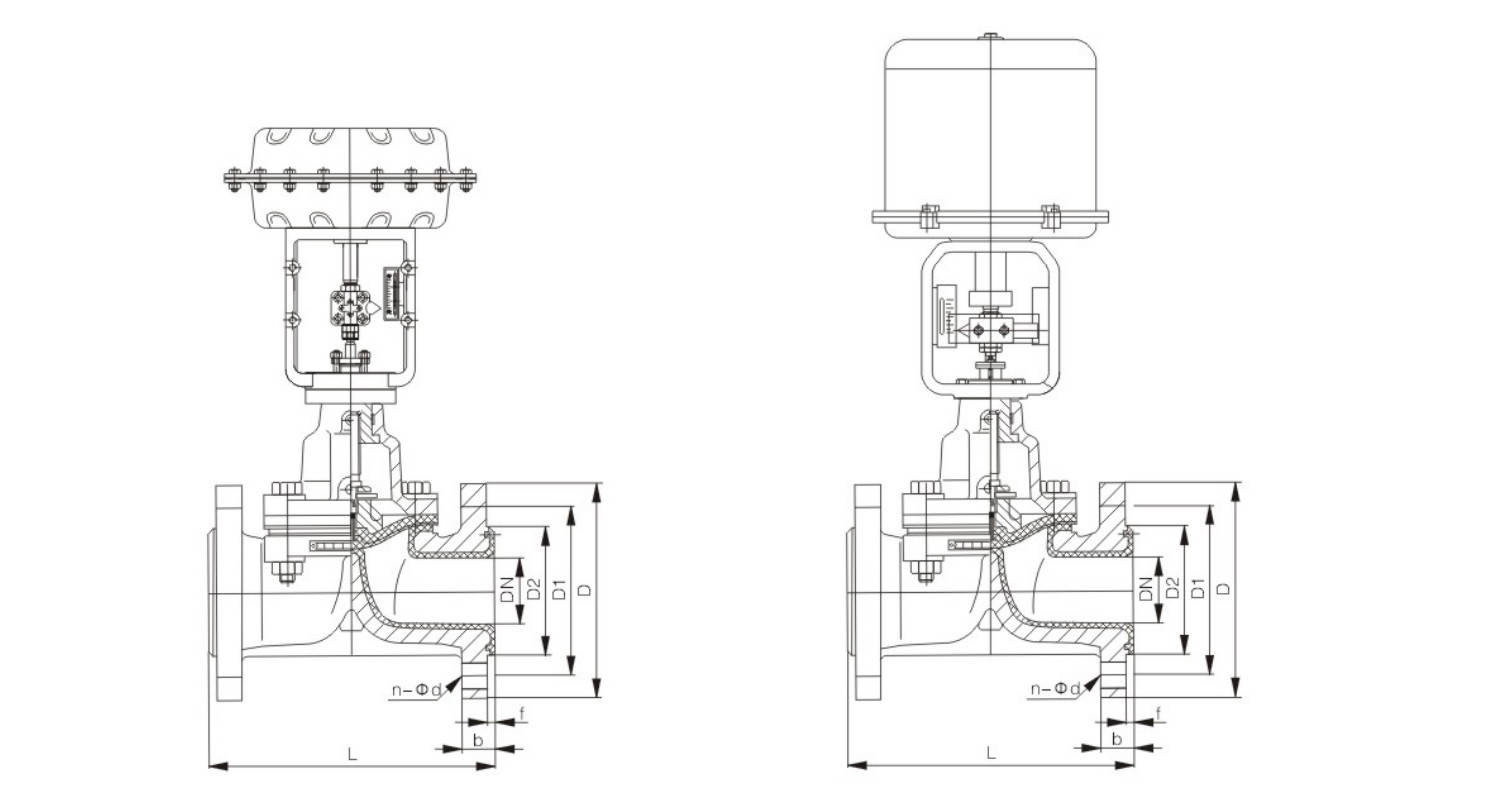

| DN | in | L | D | D1 | D2 | f | b | N-Φd | Pneumatic Actuator Model | Electric Actuator Model |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 125 | 95 | 65 | 45 | 2 | 14 | 4-Φ14 | ZJHA/B-22 | 381L-20 |
| 20 | 3/4 | 135 | 105 | 75 | 55 | 2 | 16 | 4-Φ14 | ZJHA/B-22 | 381L-20 |
| 25 | 1 | 145 | 115 | 85 | 65 | 2 | 16 | 4-Φ14 | ZJHA/B-22 | 381L-20 |
| 32 | 1 1/4 | 160 | 140 | 100 | 78 | 2 | 18 | 4-Φ18 | ZJHA/B-23 | 381L-30 |
| 40 | 1 1/2 | 180 | 150 | 110 | 85 | 3 | 18 | 4-Φ18 | ZJHA/B-23 | 381L-30 |
| 50 | 2 | 210 | 165 | 125 | 100 | 3 | 20 | 4-Φ18 | ZJHA/B-23 | 381L-30 |
| 65 | 2 1/2 | 250 | 185 | 145 | 120 | 3 | 20 | 4-Φ18 | ZJHA/B-34 | 381L-50 |
| 80 | 3 | 300 | 200 | 160 | 135 | 3 | 22 | 4/8-Φ18 | ZJHA/B-34 | 381L-50 |
| 100 | 4 | 350 | 220 | 180 | 155 | 3 | 22 | 8-Φ18 | ZJHA/B-34 | 381L-50 |
| 125 | 5 | 400 | 250 | 210 | 185 | 3 | 24 | 8-Φ18 | ZJHA/B-45 | 381L-65 |
| 150 | 6 | 460 | 285 | 240 | 210 | 3 | 24 | 8-Φ23 | ZJHA/B-45 | 381L-65 |
| 200 | 8 | 570 | 340 | 295 | 265 | 3 | 26 | 8-Φ23 | ZJHA/B-45 | 381L-65 |
| 250 | 10 | 680 | 395 | 350 | 320 | 3 | 28 | 12-Φ23 | ZJHA/B-56 | 381L-99 |
| 300 | 12 | 790 | 445 | 400 | 368 | 4 | 28 | 12-Φ23 | ZJHA/B-56 | 381L-99 |
ZTG641F(F4/F46)-PN16(1.6MPa)
| DN | in | L | D | D1 | D2 | f | b | N-Φd | Pneumatic Actuator Model | Electric Actuator Model |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 125 | 95 | 65 | 45 | 2 | 14 | 4-Φ14 | ZJHA/B-22 | 381L-30 |
| 20 | 3/4 | 135 | 105 | 75 | 55 | 2 | 16 | 4-Φ14 | ZJHA/B-22 | 381L-30 |
| 25 | 1 | 145 | 115 | 85 | 65 | 2 | 16 | 4-Φ14 | ZJHA/B-22 | 381L-30 |
| 32 | 1 1/4 | 160 | 140 | 100 | 78 | 2 | 18 | 4-Φ18 | ZJHA/B-23 | 381L-50 |
| 40 | 1 1/2 | 180 | 150 | 110 | 85 | 3 | 18 | 4-Φ18 | ZJHA/B-23 | 381L-50 |
| 50 | 2 | 210 | 165 | 125 | 100 | 3 | 20 | 4-Φ18 | ZJHA/B-23 | 381L-50 |
| 65 | 2 1/2 | 250 | 185 | 145 | 120 | 3 | 20 | 4-Φ18 | ZJHA/B-34 | 381L-65 |
| 80 | 3 | 300 | 200 | 160 | 135 | 3 | 22 | 8-Φ18 | ZJHA/B-34 | 381L-65 |
| 100 | 4 | 350 | 220 | 180 | 155 | 3 | 24 | 8-Φ18 | ZJHA/B-34 | 381L-65 |
| 125 | 5 | 400 | 250 | 210 | 185 | 3 | 26 | 8-Φ18 | ZJHA/B-45 | 381L-99 |
| 150 | 6 | 460 | 285 | 240 | 210 | 3 | 28 | 8-Φ23 | ZJHA/B-45 | 381L-99 |
| 200 | 8 | 570 | 340 | 295 | 265 | 3 | 30 | 12-Φ23 | ZJHA/B-45 | 381L-99 |
| 250 | 10 | 680 | 395 | 355 | 320 | 3 | 32 | 12-Φ25 | ZJHA/B-56 | 381L-160 |
| 300 | 12 | 790 | 445 | 410 | 375 | 4 | 34 | 12-Φ25 | ZJHA/B-56 | 381L-160 |
