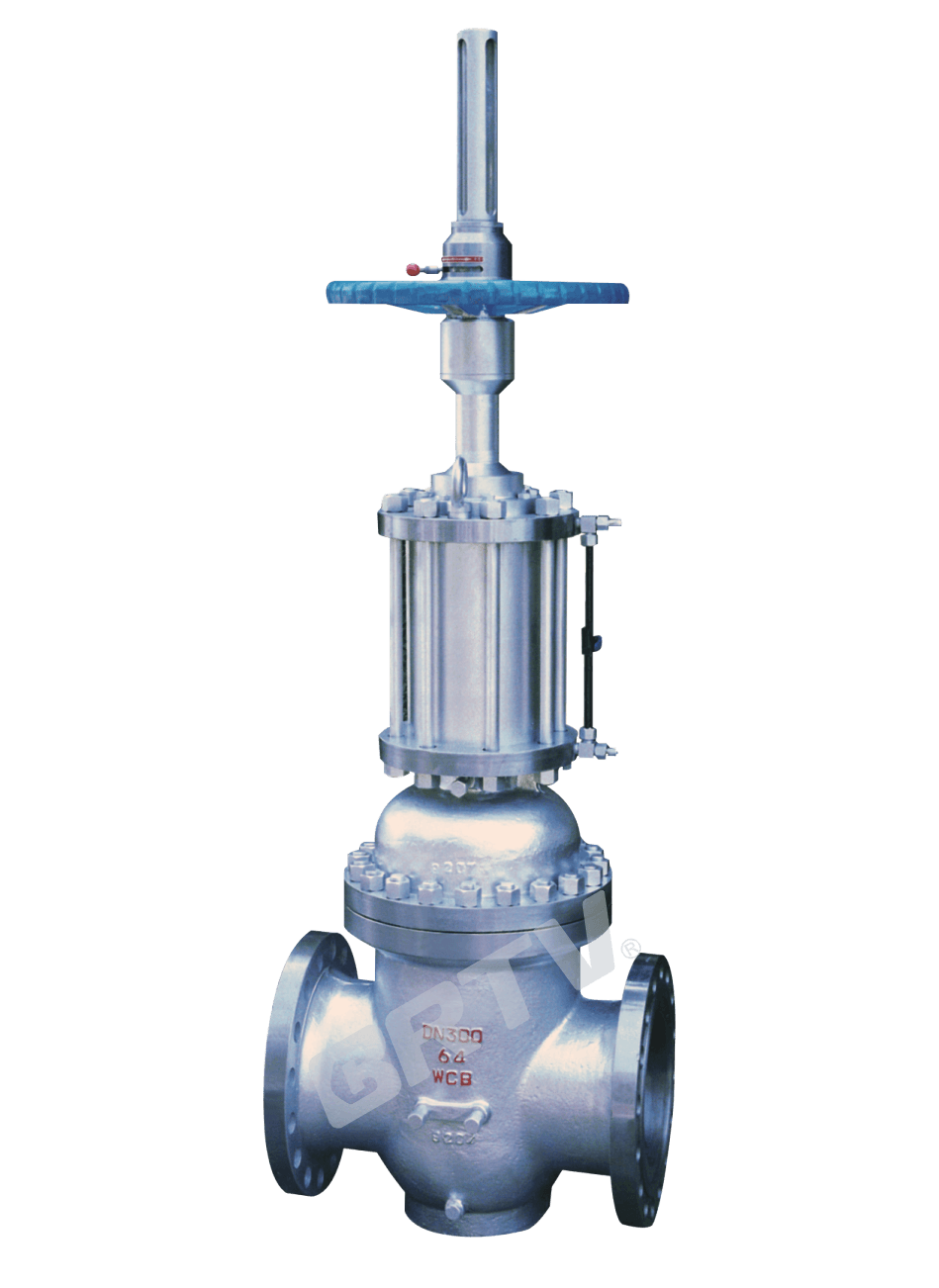

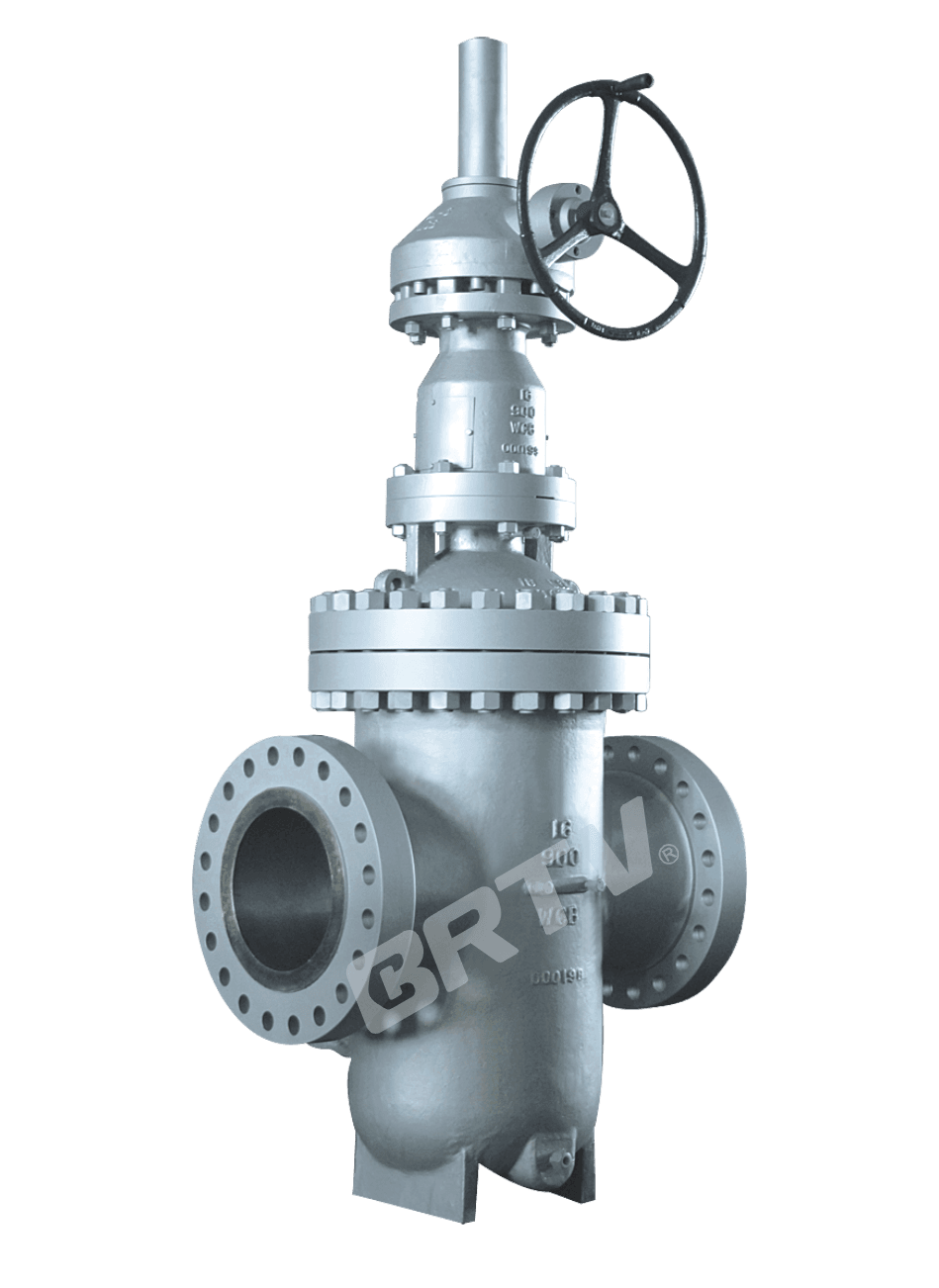

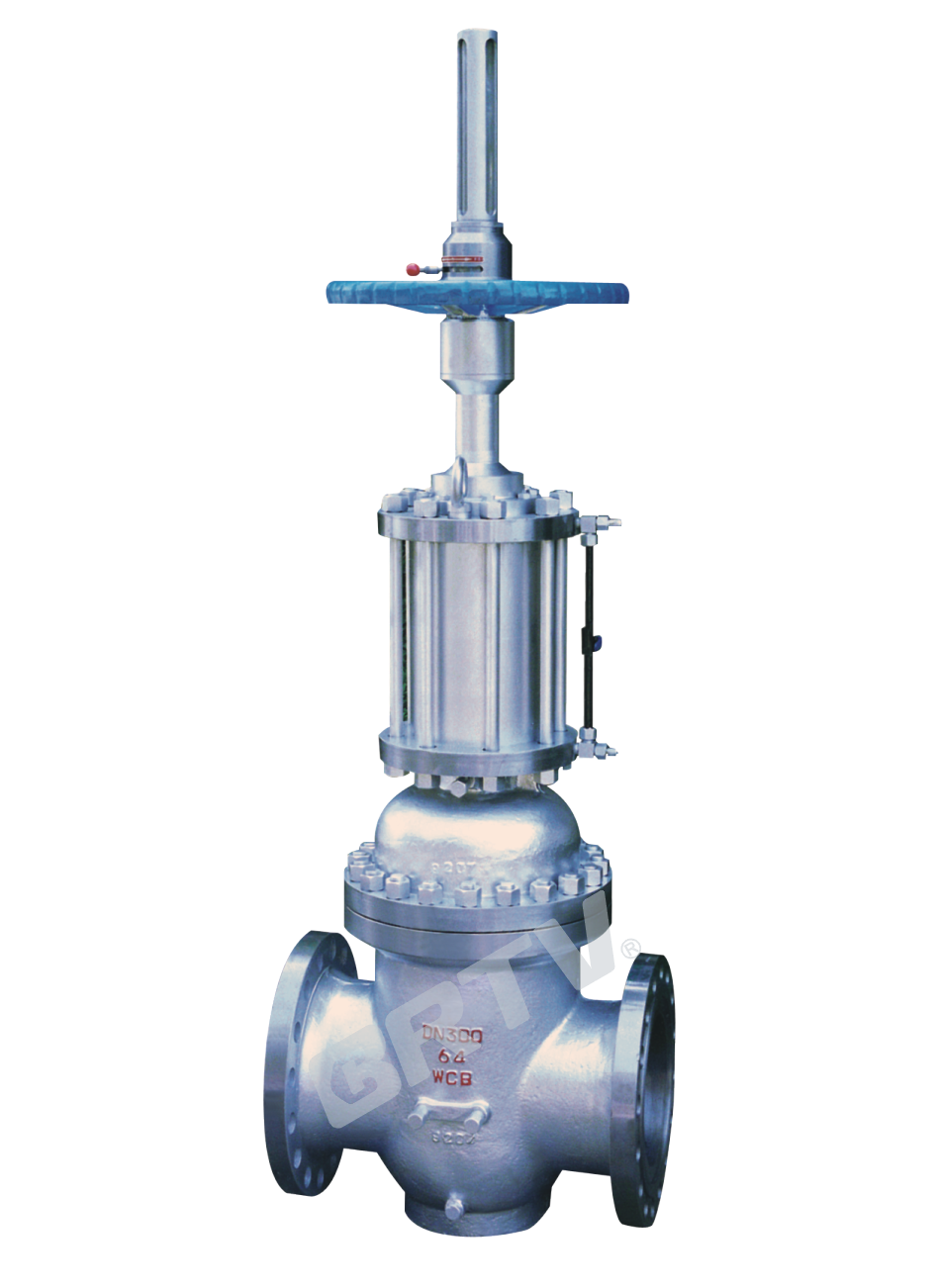

Slab Gate Valve

Product overview

It's suitable for industries such as natural gas, oil, chemical, urban construction, environmental protection. And the antisulfur series can be applied to the natural gas transportation pipeline which includes lots of corrosive substance such as some impurity and H2S.

Product Features

Totally–enclosed body equipped with steel stem protective cap is able to use in various environment such as sand etc.
Through–conduit & full bore, large flow and low flow–resistance design. Through–conduit body with guide orifice may allow pipeline cleaning by go–gauge.
Multi–level of upstream and downstream sealing structure may automatically release over pressure when pressure abnormally rises.
An extension pipe with diffusion & blow–down structure may guarantee maintenance operation during long–term buried.
Where active sealing structure equipped with oil seal can give emergency sealing to satisfy demands of long–term safety services.
Valve equipped with opening and closing indicator may directly indicate service conditions.
The part material, flange and butt weld end dimension may be selected according to current operating condition and users' requirement, so that meet the requirements of various engineering.

Administer Standard

Design Spec	Face to Face	Flange End	Inspection and Test	Pressure-Temp.	Marking
JB/T 5298; GB/T 19672	JB/T 5298	JB/T 79; HG/T 20592	GB/T 13927; GB/T 26480	GB 9131	GB/T 12220
API 6D	API 6D	ANSI B16.5	API 6D	ANSI B16.34	MSS SP-25

Pressure Test

(MPa)

Pressure Class	PN / Class	Shell (MPa)	Left Seal (MPa)	Right Seal (MPa)	Pressure Seal (MPa)	Suitable Temp (G Type °C)	Suitable Temp (D Type °C)	Suitable Temp (Ordinary °C)	Suitable Medium (Sour Service)	Suitable Medium (Basic)
Nominal Pressure	1.6	2.4	1.76	1.76	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil
Nominal Pressure	2.5	3.75	2.75	2.75	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil
Nominal Pressure	4.0	6.0	4.4	4.4	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil
Nominal Pressure	6.4	9.6	7.04	7.04	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil
Pound Class	150	3.0	2.2	2.2	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil
Pound Class	300	7.7	5.6	5.6	0.6	-29 ~ 250	-46 ~ 121	-29 ~ 121	Medium with H₂S + CO₂ total > 500 mg/m³	Water, Natural Gas, Oil

Main Part Materials and Property

Part	WCB	WC6	A352-LCB	A351-CF8M
Body / Bonnet	WCB	WC6	A352-LCB	A351-CF8M
Wedge	2Cr13 + ENP	20CrMoV + STL	ANSI 410 + ENP	ANSI 316 + ENP
Stem	2Cr13	2Cr13	A182-F6a	A182-F316S
Seat	25 + PTFE	20CrMoV + STL	A105 + PTFE	A182-F316 + PTFE
Packing	NBR / FPM	Flexible Graphite	Flexible Graphite	PTFE + FPM
Gasket	Flexible Graphite (18-8)	Flexible Graphite (18-8)	Flexible Graphite (18-8)	Flexible Graphite (18-8)
Bolt	35	35CrMo	A193-B7M	A193-B8
Suitable Medium	Water, Oil, Steam	Steam, Oil	Propane, Ethylene	Nitric Acid

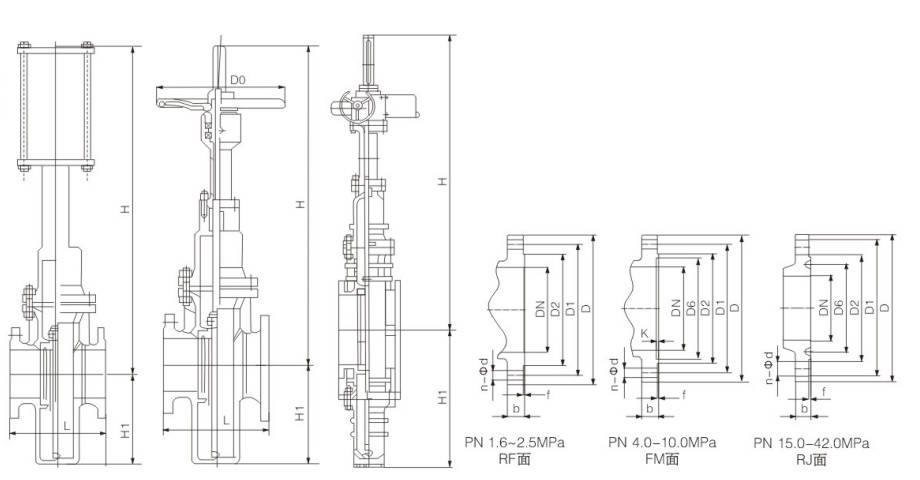

Through Conduit Slab Gate Valve

Main Dimension

Type: (K)Z43WF-16C (K)Z543WF-16C (K)Z643WF-16C (K)Z943WF-16C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	178	160	125	100	-	16	4-Φ18	584	250	590	80	365	DZW10
65	190	180	145	120	-	18	4-Φ18	634	250	590	95	365	DZW10
80	203	195	160	135	-	20	8-Φ18	688	250	590	100	365	DZW10
100	229	215	180	155	-	20	8-Φ18	863	300	590	114	365	DZW15
125	254	245	210	185	-	22	8-Φ18	940	350	590	132	365	DZW20
150	267	280	240	210	-	24	8-Φ23	1030	350	590	150	365	DZW20
200	292	335	295	265	-	26	12-Φ23	1277	350	590	168	365	DZW20
250	330	405	355	320	-	30	12-Φ25	1491	400	810	203	470	DZW30
300	356	460	410	375	-	30	12-Φ25	1701	450	810	237	470	DZW30
350	381	520	470	435	-	34	16-Φ25	1875	500	810	265	470	DZW45
400	406	580	525	485	-	36	16-Φ30	2180	305	830	300	550	DZW90
450	432	640	585	545	-	40	20-Φ30	2440	305	830	325	550	DZW120
500	457	705	650	608	-	44	20-Φ34	2860	305	830	360	550	DZW120
600	508	840	770	718	-	48	20-Φ41/36	3450	305	870	425	320	DZW180
700	610	910	840	788	-	50	24-Φ41/36	3960	305	870	460	320	DZW250
800	660	1020	950	898	-	52	24-Φ41	4550	305	1170	512	570	DZW250
900	711	1120	1050	998	-	54	28-Φ41	5250	250	1170	565	570	DZW350
1000	811	1255	1170	1110	-	56	28-Φ48/42	5870	250	1170	630	570	DZW500

Type: (K)Z43WF-25C (K)Z543WF-25C (K)Z643WF-25C (K)Z943WF-25C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	178	160	125	100	-	20	4-Φ18	584	250	590	80	365	DZW10
65	190	180	145	120	-	22	8-Φ18	634	300	590	95	365	DZW10
80	203	195	160	135	-	22	8-Φ18	688	350	590	100	365	DZW15
100	229	230	190	160	-	24	8-Φ23	863	350	590	114	365	DZW20
125	254	270	220	188	-	28	8-Φ25	940	350	590	132	365	DZW20
150	267	300	250	218	-	30	8-Φ25	1030	400	590	150	365	DZW20
200	292	360	310	278	-	34	12-Φ25	1277	450	810	168	470	DZW30
250	330	425	370	332	-	36	12-Φ30	1491	500	810	203	470	DZW30
300	356	485	430	390	-	40	16-Φ30	1701	305	810	237	470	DZW60
350	381	550	490	448	-	44	16-Φ34	1875	305	830	265	550	DZW90
400	406	610	550	505	-	48	16-Φ34/36	2180	305	830	300	550	DZW120
450	432	660	600	555	-	50	20-Φ34/36	2440	305	830	325	550	DZW120
500	457	730	660	610	-	52	20-Φ41/36	2860	305	870	360	320	DZW180
600	508	840	770	718	-	56	20-Φ41	3450	305	870	425	320	DZW250
700	610	955	875	815	-	60	24-Φ48/42	3960	305	870	460	320	DZW500
800	660	1070	990	930	-	64	24-Φ48	4550	305	1170	512	570	DZW500
900	711	1180	1090	1025	-	66	28-Φ54/48	5250	305	1170	595	570	DZW800
1000	811	1305	1210	1140	-	68	28-Φ58	5870	305	1170	660	570	DZW800

Type: (K)Z43WF-40C (K)Z543WF-40C (K)Z643WF-40C (K)Z943WF-40C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	160	125	100	88	20	4-Φ18	584	250	590	80	365	DZW10
65	280	180	145	120	110	22	8-Φ18	634	250	590	95	365	DZW10
80	310	195	160	135	121	22	8-Φ18	679	250	590	102	365	DZW15
100	350	230	190	160	150	24	8-Φ23	863	300	590	115	365	DZW20
125	400	270	220	188	176	28	8-Φ25	940	350	590	133	365	DZW20
150	450	300	250	218	204	30	8-Φ25	1040	350	810	152	470	DZW30
200	550	375	320	282	260	38	12-Φ30	1282	350	810	188	470	DZW30
250	650	445	385	345	313	42	12-Φ34	1495	400	810	223	470	DZW45
300	750	510	450	408	364	46	16-Φ34	1701	450	830	250	550	DZW60
350	850	570	510	465	422	52	16-Φ34/36	1880	500	830	280	550	DZW90
400	950	655	585	535	474	58	16-Φ41	2200	305	870	310	320	DZW120
450	1050	680	610	560	524	60	20-Φ41	2480	305	-	335	-	-
500	1150	755	670	612	576	62	20-Φ48/42	2890	305	870	380	320	DZW250
600	1350	890	795	730	676/678	62	20-Φ54/48	3460	305	1170	450	570	DZW350
700	1450	995	900	835	768/768	68	24-Φ54/48	3985	305	1170	500	570	DZW500
800	1650	1135	1030	960	883/876	76	24-Φ58	4750	305	1060	570	500	DZW800

Type: (K)Z43WF-64C (K)Z543WF-64C (K)Z643WF-64C (K)Z943WF-64C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	175	135	105	88	26	4-Φ23	584	250	590	90	365	DZW10
65	280	200	160	130	110	28	8-Φ23	634	250	590	105	365	DZW10
80	310	210	170	140	121	30	8-Φ23	679	250	590	110	365	DZW20
100	350	250	200	168	150	32	8-Φ25	763	300	590	130	365	DZW20
125	400	295	240	202	176	36	8-Φ30	970	350	590	150	365	DZW30
150	450	340	280	240	204	38	8-Φ34	1038	350	810	175	470	DZW30
200	550	405	345	300	260	44	12-Φ34/36	1282	350	810	210	470	DZW60
250	650	470	400	352	313	48	12-Φ41/36	1495	400	830	240	550	DZW90
300	750	530	460	412	364	54	16-Φ41/36	1965	450	830	270	550	DZW90
350	850	595	525	475	422	60	16-Φ41	2185	500	870	300	320	DZW120
400	950	670	585	525	474	66	16-Φ48/42	2573	305	870	335	320	DZW180
450	1050	715	630	570	524	68	20-Φ48	2800	305	-	360	-	-
500	1150	800	705	640	576	70	20-Φ54/48	3280	305	1170	405	570	DZW250
600	1350	930	820	750	676/678	76	20-Φ58	3800	305	1170	470	570	DZW500

Type: (K)Z43WF-100C (K)Z543WF-100C (K)Z643WF-100C (K)Z943WF-100C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	195	145	112	88	28	4-Φ25	590	250	590	100	365	DZW15
65	280	220	170	138	110	32	8-Φ25	640	250	590	115	365	DZW20
80	310	230	180	148	121	34	8-Φ25	680	250	590	120	365	DZW20
100	350	265	210	172	150	38	8-Φ30	870	300	810	135	470	DZW30
125	400	310	250	210	176	42	8-Φ34	980	350	810	155	470	DZW45
150	450	350	290	250	204	46	12-Φ34	1100	350	830	180	550	DZW60
200	550	430	360	312	260	54	12-Φ41/36	1315	350	830	220	550	DZW90
250	650	500	430	382	313	60	12-Φ41	1605	400	870	255	320	DZW120
300	750	585	500	442	364	70	16-Φ48/42	1925	450	870	295	320	DZW180
350	850	665	560	498	422	76	16-Φ54/48	2280	500	1170	335	570	DZW250
400	950	715	620	558	474	80	16-Φ54/48	2580	305	1170	360	570	DZW500

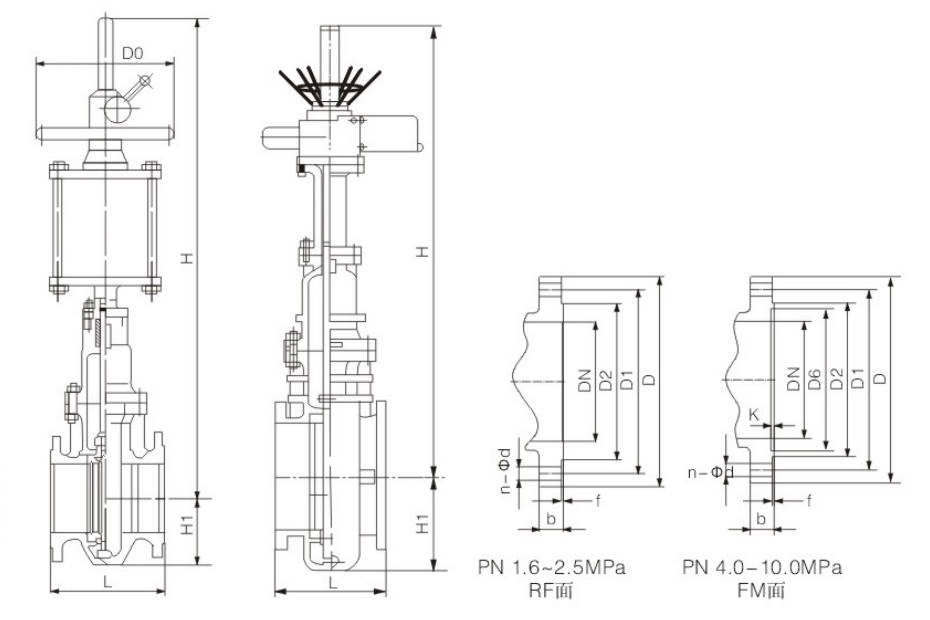

Non-Through Conduit Slab Gate Valve

Main Dimension

Non-Through Conduit Slab Gate Valve

Type: (K)Z43WF-16C (K)Z543WF-16C (K)Z643WF-16C (K)Z943WF-16C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	178	160	125	100	-	16	4-Φ18	584	250	590	80	365	DZW10
65	191	180	145	120	-	18	4-Φ18	634	250	590	95	365	DZW10
80	203	195	160	135	-	20	8-Φ18	688	250	590	100	365	DZW10
100	229	215	180	155	-	20	8-Φ18	863	300	590	114	365	DZW15
125	254	245	210	185	-	22	8-Φ18	940	350	590	132	365	DZW20
150	267	280	240	210	-	24	8-Φ23	1030	350	590	150	365	DZW20
200	292	335	295	265	-	26	12-Φ23	1277	350	590	168	365	DZW20
250	330	405	355	320	-	30	12-Φ25	1491	400	810	203	470	DZW30
300	356	460	410	375	-	30	12-Φ25	1701	450	810	237	470	DZW30
350	381	520	470	435	-	34	16-Φ25	1875	500	810	265	470	DZW45
400	406	580	525	485	-	36	16-Φ30	2180	305	830	300	550	DZW90
450	432	640	585	545	-	40	20-Φ30	2440	305	830	325	550	DZW120
500	457	705	650	608	-	44	20-Φ34	2860	305	830	360	550	DZW120
600	508	840	770	718	-	48	20-Φ41/36	3450	305	870	425	320	DZW180
700	610	910	840	788	-	50	24-Φ41/36	3960	305	870	460	320	DZW250
800	660	1020	950	898	-	52	24-Φ41	4550	305	1170	512	570	DZW250
900	711	1120	1050	998	-	54	28-Φ41	5250	250	1170	565	570	DZW350
1000	812	1255	1170	1110	-	56	28-Φ48/42	5870	250	1170	630	570	DZW500

Type: (K)Z43WF-25C (K)Z543WF-25C (K)Z643WF-25C (K)Z943WF-25C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	178	160	125	100	-	20	4-Φ18	584	250	590	80	365	DZW10
65	191	180	145	120	-	22	8-Φ18	634	300	590	95	365	DZW10
80	203	195	160	135	-	22	8-Φ18	688	350	590	100	365	DZW15
100	229	230	190	160	-	24	8-Φ23	863	350	590	114	365	DZW20
125	254	270	220	188	-	28	8-Φ25	940	350	590	132	365	DZW20
150	267	300	250	218	-	30	8-Φ25	1030	400	590	150	365	DZW20
200	292	360	310	278	-	34	12-Φ25	1277	450	810	168	470	DZW30
250	330	425	370	332	-	36	12-Φ30	1491	500	810	203	470	DZW30
300	356	485	430	390	-	40	16-Φ30	1701	305	810	237	470	DZW60
350	381	550	490	448	-	44	16-Φ34	1875	305	830	265	550	DZW90
400	406	610	550	505	-	48	16-Φ34	2180	305	830	300	550	DZW120
450	432	660	600	555	-	50	20-Φ34	2440	305	830	325	550	DZW120
500	457	730	660	610	-	52	20-Φ41	2860	305	870	360	320	DZW180
600	508	840	770	718	-	56	20-Φ41	3450	305	870	425	320	DZW250
700	610	955	875	815	-	60	24-Φ48	3960	305	870	460	320	DZW500
800	660	1070	990	930	-	64	24-Φ48	4550	305	1170	512	570	DZW500
900	711	1180	1090	1025	-	66	28-Φ54	5250	305	1170	595	570	DZW800
1000	812	1305	1210	1140	-	68	28-Φ58	5870	305	1170	660	570	DZW800

Type: (K)Z43WF-40C (K)Z543WF-40C (K)Z643WF-40C (K)Z943WF-40C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	160	125	100	88	20	4-Φ18	584	250	590	80	365	DZW10
65	280	180	145	120	110	22	8-Φ18	634	250	590	95	365	DZW10
80	310	195	160	135	121	22	8-Φ18	679	250	590	102	365	DZW15
100	350	230	190	160	150	24	8-Φ23	863	300	590	115	365	DZW20
125	400	270	220	188	176	28	8-Φ25	940	350	590	133	365	DZW20
150	450	300	250	218	204	30	8-Φ25	1040	350	810	152	470	DZW30
200	550	375	320	282	260	38	12-Φ30	1282	350	810	188	470	DZW30
250	650	445	385	345	313	42	12-Φ34	1495	400	810	223	470	DZW45
300	750	510	450	408	364	46	16-Φ34	1701	450	830	250	550	DZW60
350	850	570	510	465	422	52	16-Φ34	1880	500	830	280	550	DZW90
400	950	655	585	535	474	58	16-Φ41	2200	305	870	310	320	DZW120
450	1050	680	610	560	524	60	20-Φ41	2480	305	-	335	-	-
500	1150	755	670	612	576	62	20-Φ48/42	2890	305	870	380	320	DZW250
600	1350	890	795	730	678/676	62	20-Φ54/48	3460	305	1170	450	570	DZW350
700	1450	995	900	835	768/778	68	24-Φ54/48	3985	305	1170	500	570	DZW500
800	1650	1135	1030	960	876/883	76	24-Φ58	4750	305	1060	570	500	DZW800

Type: (K)Z43WF-64C (K)Z543WF-64C (K)Z643WF-64C (K)Z943WF-64C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	175	135	105	88	26	4-Φ23	584	250	590	90	365	DZW10
65	280	200	160	130	110	28	8-Φ23	634	250	590	105	365	DZW10
80	310	210	170	140	121	30	8-Φ23	679	250	590	110	365	DZW20
100	350	250	200	168	150	32	8-Φ25	763	300	590	130	365	DZW20
125	400	295	240	202	176	36	8-Φ30	970	350	590	150	365	DZW30
150	450	340	280	240	204	38	8-Φ34	1038	350	810	175	470	DZW30
200	550	405	345	300	260	44	12-Φ34/36	1282	350	810	210	470	DZW60
250	650	470	400	352	313	48	12-Φ41/36	1495	400	830	240	550	DZW90
300	750	530	460	412	364	54	16-Φ41/36	1965	450	830	270	550	DZW90
350	850	595	525	475	422	60	16-Φ41	2185	500	870	300	320	DZW120
400	950	670	585	525	474	66	16-Φ48/42	2573	305	870	335	320	DZW180
450	1050	715	630	570	524	68	20-Φ48	2800	305	-	360	-	-
500	1150	800	705	640	576	70	20-Φ54/48	3280	305	1170	405	570	DZW250
600	1350	930	820	750	676/678	76	20-Φ58	3800	305	1170	470	570	DZW500

Type: (K)Z43WF-100C (K)Z543WF-100C (K)Z643WF-100C (K)Z943WF-100C

DN	L	D	D1	D2	D6	b	N-Φd	H	D0	L2	H1	DA	Electric Actuator Code
50	250	195	145	112	88	28	4-Φ25	590	250	590	100	365	DZW15
65	280	220	170	138	110	32	8-Φ25	640	250	590	115	365	DZW20
80	310	230	180	148	121	34	8-Φ25	680	250	590	120	365	DZW20
100	350	265	210	172	150	38	8-Φ30	870	300	810	135	470	DZW30
125	400	310	250	210	176	42	8-Φ34	980	350	810	155	470	DZW45
150	450	350	290	250	204	46	12-Φ34	1100	350	830	180	550	DZW60
200	550	430	360	312	260	54	12-Φ41/36	1315	350	830	220	550	DZW90
250	650	500	430	382	313	60	12-Φ41	1605	400	870	255	320	DZW120
300	750	585	500	442	364	70	16-Φ48/42	1925	450	870	295	320	DZW180
350	850	665	560	498	422	76	16-Φ54/48	2280	500	1170	335	570	DZW250
400	950	715	620	558	474	80	16-Φ54/48	2580	305	1170	360	570	DZW500

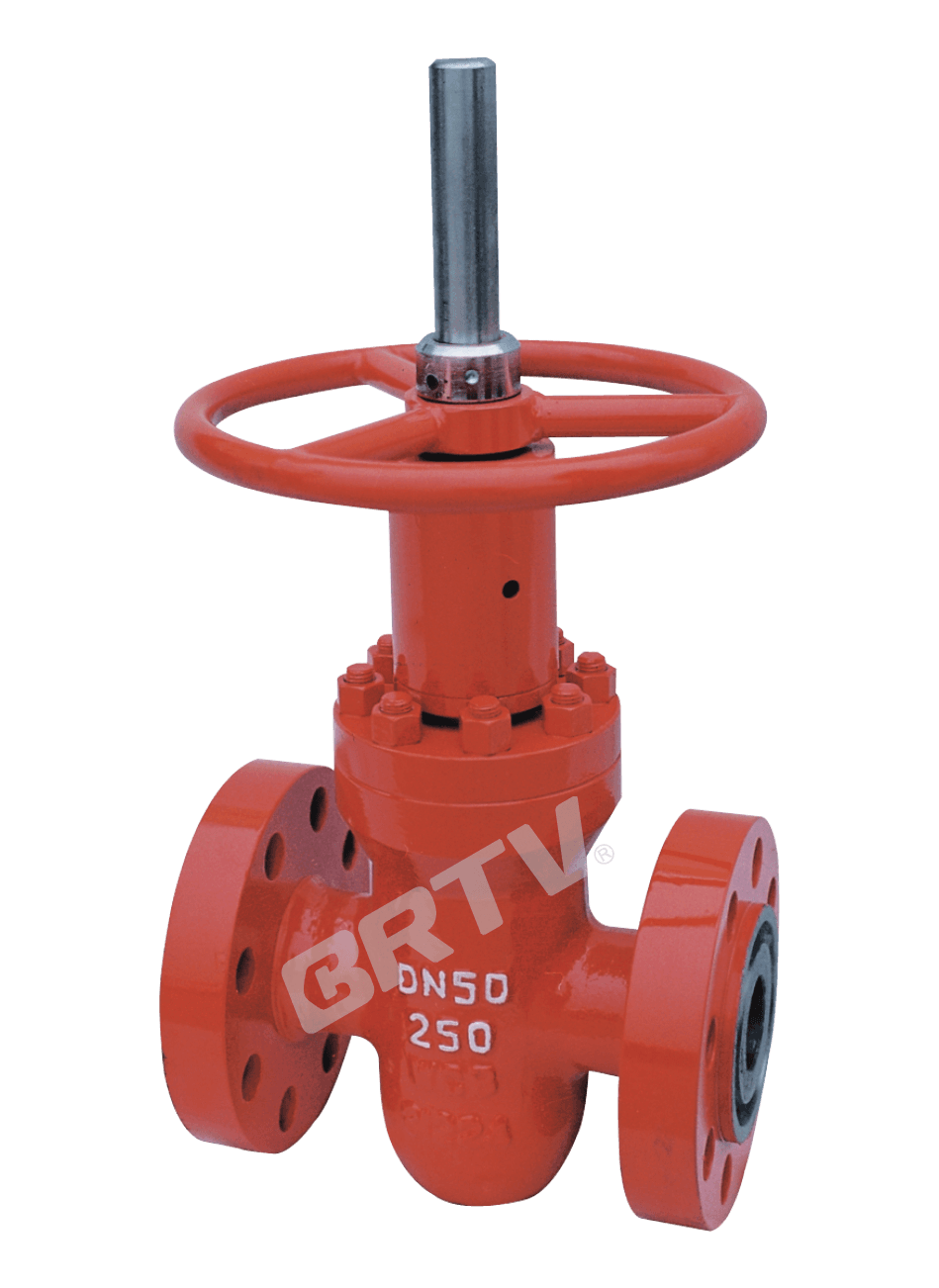

High Pressure Slab Gate Valve

Product overview

The ZF series water injecting valves are high pressure flat-plate gate valves. with a reasonable structure, a reliable seal and an easy operation and the sealing face is built-up welded with carbide alloy, features anti-corrosion, anti-wear and anti-erosion and can be used for throttle, especially suitable for the water, oil, mud pulpy, natural gas pipeline as the open-close and adjusting device to control the medium flowing.

Main Characteristics

New balanced floating valve seat, two-way opening and closing, small friction between sealing pairs, long service life, reliable sealing, flexible opening and closing.
A diversion hole with the same diameter as the flow passage is opened at the lower part of the ram. When the valve is fully opened, it is a straight line with small flow resistance coefficient and almost no pressure loss. The pipeline can be cleaned through the ball.
Due to gateThe plate is always close to the sealing surface of the valve seat to protect the sealing surface of the valve seat from medium erosion and extend the service life of the valve.
The sealing surface of valve seat and ram is spray welded with cemented carbide, which is corrosion-resistant, wear-resistant, erosion resistant and has long service life. The valve rod seal adopts compound seal, reliable seal and small friction resistance.
The valve is a fully enclosed structure, which prevents the external impurities from entering the inner cavity, effectively protects the internal parts and prolongs the service life of the valve.

Technical Specification

Design Standard	—	JB/T5298, API 6D
Structural Length	Flanged	GB/T12221, JB/T5298
Structural Length	Welded Connection	GB/T15188.1
Flanged Ends	—	GB/T9113, JB/T79, ANSI B16.5
Butt-welding Ends	—	GB/T12224
Test & Inspection	—	GB/T13927, JB/T9092

Products Performance Specification

Nominal Pressure (MPa)	16.0	20.0	25.0	35.0	42.0
Shell Test Pressure (MPa)	24.0	30.0	37.50	52.50	63.0
Seal Test Pressure (MPa)	17.6	22.0	27.5	38.5	46.2
Applicable Temperature (°C)	-29 ~ 121	-29 ~ 121	-29 ~ 121	-29 ~ 121	-29 ~ 121
Applicable Medium (Ordinary Type)	Petroleum, natural gas, refined oil, water, etc.	Petroleum, natural gas, refined oil, water, etc.	Petroleum, natural gas, refined oil, water, etc.	Petroleum, natural gas, refined oil, water, etc.	Petroleum, natural gas, refined oil, water, etc.
Applicable Medium (Antisulphur Type)	Petroleum, natural gas containing H₂S, CO₂	Petroleum, natural gas containing H₂S, CO₂	Petroleum, natural gas containing H₂S, CO₂	Petroleum, natural gas containing H₂S, CO₂	Petroleum, natural gas containing H₂S, CO₂
Connection Type	Flanged end, welded end, clamp end	Flanged end, welded end, clamp end	Flanged end, welded end, clamp end	Flanged end, welded end, clamp end	Flanged end, welded end, clamp end
Driving Method	Manual, electric, pneumatic	Manual, electric, pneumatic	Manual, electric, pneumatic	Manual, electric, pneumatic	Manual, electric, pneumatic

High Pressure Slab Gate Valve

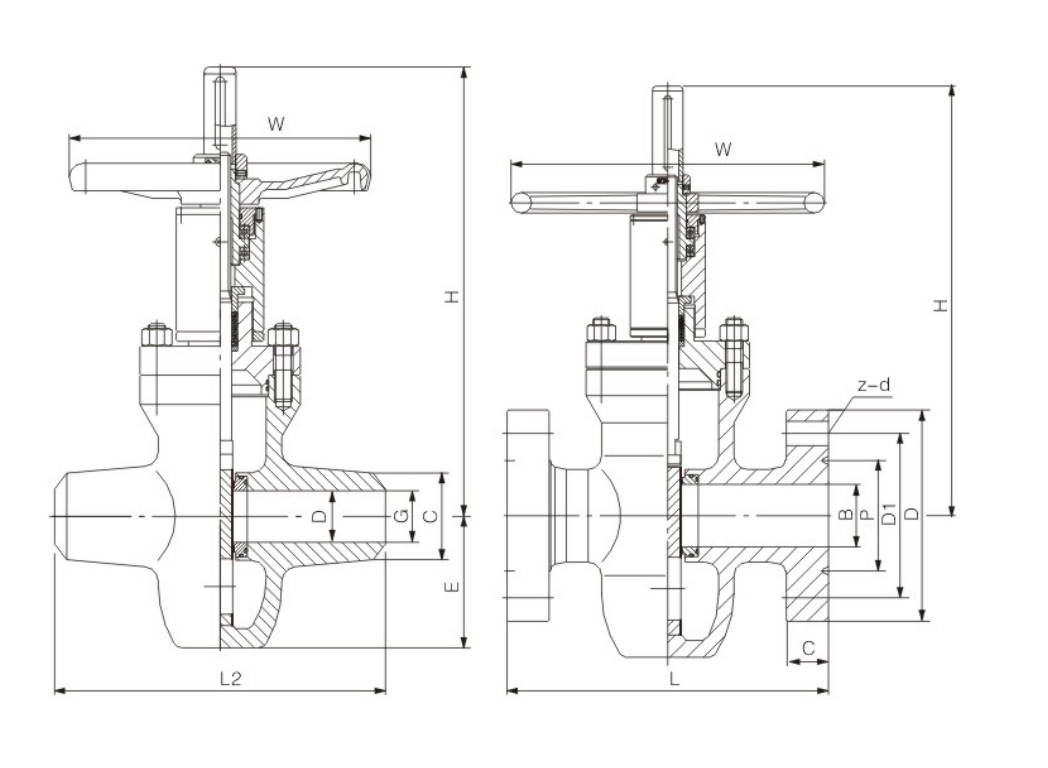

Main external and connection dimension

(mm)

PN (MPa)	DN (mm)	B	D	D1	P	L	C	H	Z-d	W
16.0 / 20.0	25	22	150	101.5	50.80	210	29	255	4-26	180
16.0 / 20.0	32	25	160	111	60.32	230	29	307	4-26	200
16.0 / 20.0	40	35	180	124	68.28	260	32	343	4-30	240
16.0 / 20.0	50	47	215	165	95.25	300	38.5	381	8-26	250
16.0 / 20.0	65	57	245	190.5	107.95	340	41.5	400	8-30	280
16.0 / 20.0	80	72	240	190.5	123.82	390	38.5	472	8-26	320
16.0 / 20.0	100	92	290	235	149.22	450	44.5	525	8-33	350
16.0 / 20.0	150	136	380	317.5	211.12	600	56	810	12-33	450
16.0 / 20.0	200	174	470	393.5	269.88	750	63.5	960	12-39	550
25.0	25	22	150	101.5	50.80	210	29	255	4-26	180
25.0	32	28	160	111	60.32	230	29	307	4-26	200
25.0	40	35	180	124	68.28	260	32	343	4-30	240
25.0	50	47	215	165	95.25	300	38.5	381	8-26	260
25.0	65	57	245	190.5	107.95	340	41.5	400	8-30	280
25.0	80	70	265	203	136.92	390	48	472	8-33	320
25.0	100	92	310	241.5	161.92	450	54	525	8-36	350
25.0	150	136	395	317.5	211.12	600	83	810	12-39	450
25.0	200	174	485	393.5	269.68	750	92	960	12-45	550
35.0 / 42.0	25	19	160	108	60.62	210	35	255	4-26	180
35.0 / 42.0	32	25	185	130	70.24	230	38.5	307	4-30	200
35.0 / 42.0	40	29	205	146	82.55	260	44.5	343	4-33	240
35.0 / 42.0	50	38	235	171.5	101.60	300	51	381	8-30	260
35.0 / 42.0	65	48	265	197	111.12	340	57.5	400	8-33	280
35.0 / 42.0	80	57	305	228.5	127.00	390	67	472	8-36	320
35.0 / 42.0	100	73	355	273	157.18	450	76.5	525	8-42	350
35.0 / 42.0	150	111	485	368.5	228.60	600	108	810	8-56	450
35.0 / 42.0	200	146	550	438	279.40	750	127	960	12-53	550

Manufacturing Process

Step 1: Order and Design

Based on the customer’s pressure rating, nominal diameter, material, connection type, and operating conditions, we confirm the product’s technical requirements and complete the drawing design. For slab gate valves, the design phase also requires careful verification of the gate and seat sealing structures, as well as the stem dimensions, to ensure the valve delivers excellent sealing performance and stable opening and closing.

Slab Gate Valve

Step 2: Forging & Casting

Major pressure-bearing components such as the valve body and bonnet are typically formed using forging or casting processes, with raw materials required to meet relevant standards. After forming, the slab gate valve body blank undergoes heat treatment and a preliminary visual inspection to ensure its internal structure, strength, and dimensional allowances meet the requirements for subsequent machining.

Slab Gate Valve

Step 3: Machining

Precision machining is performed on components such as the valve body, bonnet, gate, seat, and stem, including turning, boring, drilling, milling, and sealing surface finishing. For slab gate valves, particular emphasis is placed on the machining accuracy of flow passages, guide grooves, and sealing surfaces during this stage to ensure smooth operation and effective bidirectional sealing.

Slab Gate Valve

Step 4: Assembly

After components pass inspection, they proceed to the assembly process, where the seat is installed, the gate is assembled, the stem is connected, the bracket is mounted, and the actuator is assembled in sequence. For slab gate valves, special attention must be paid during assembly to the clearance between the gate and the seat, as well as the proper installation of sealing components, to avoid compromising performance.

Slab Gate Valve

Step 5: Testing & Quality Assurance

After assembly, comprehensive testing is conducted, including dimensional checks, visual inspections, body strength tests, seal tests, and opening/closing operation tests. For slab gate valves, testing focuses on sealing performance, operating torque, and overall reliability to ensure the product meets API, ASME, or customer technical specifications.

Slab Gate Valve

Step 6: Painting and Finishing

After passing inspection, the valve surface is cleaned, treated with rust prevention, and painted, followed by the application of nameplates, markings, and final packaging. This step enhances the product’s aesthetic quality and corrosion resistance, ensuring the valve is well-protected during transportation and storage.

Slab Gate Valve

Applications

Primarily used in industrial pipelines such as oil, natural gas, chemical, and municipal networks, these valves serve as shut-off devices for isolating or connecting media (such as natural gas, crude oil, and refined petroleum products).

These valves are widely used in:

Oil and Gas

Chemical Processing

Power Plants

Water Treatment

Metallurgy and Mining

Agriculture and Irrigation

Factory Environment

Factory Production Line

Material Storage

Quality Control

Assembly Workshop

Quality Control

Assembly Workshop

Why Choose Us

Superior Quality

Our valves are manufactured using premium materials and undergo rigorous quality testing to ensure reliable performance in demanding industrial applications.

Advanced Technology

Equipped with state-of-the-art CNC machining centers and precision manufacturing equipment, we deliver valves with exceptional accuracy and consistency.

Competitive Pricing

Through optimized manufacturing processes and bulk material procurement, we offer high-quality valves at competitive prices without compromising on quality.

Expert Support

Our experienced technical team provides comprehensive support from product selection to after-sales service, ensuring optimal valve performance for your specific application.

Request a Quote

Product overview

Product Features

Administer Standard

Pressure Test

Main Part Materials and Property

Through Conduit Slab Gate Valve

Main Dimension

Non-Through Conduit Slab Gate Valve

Main Dimension

High Pressure Slab Gate Valve

Product overview

Main Characteristics

Technical Specification

Products Performance Specification

Main external and connection dimension

Manufacturing Process

Applications

Factory Environment

Why Choose Us

Related Products

High Pressure Gate Valve

Knife Gate Valve

Flanged Gate Valve

Jacketed Gate Valve
