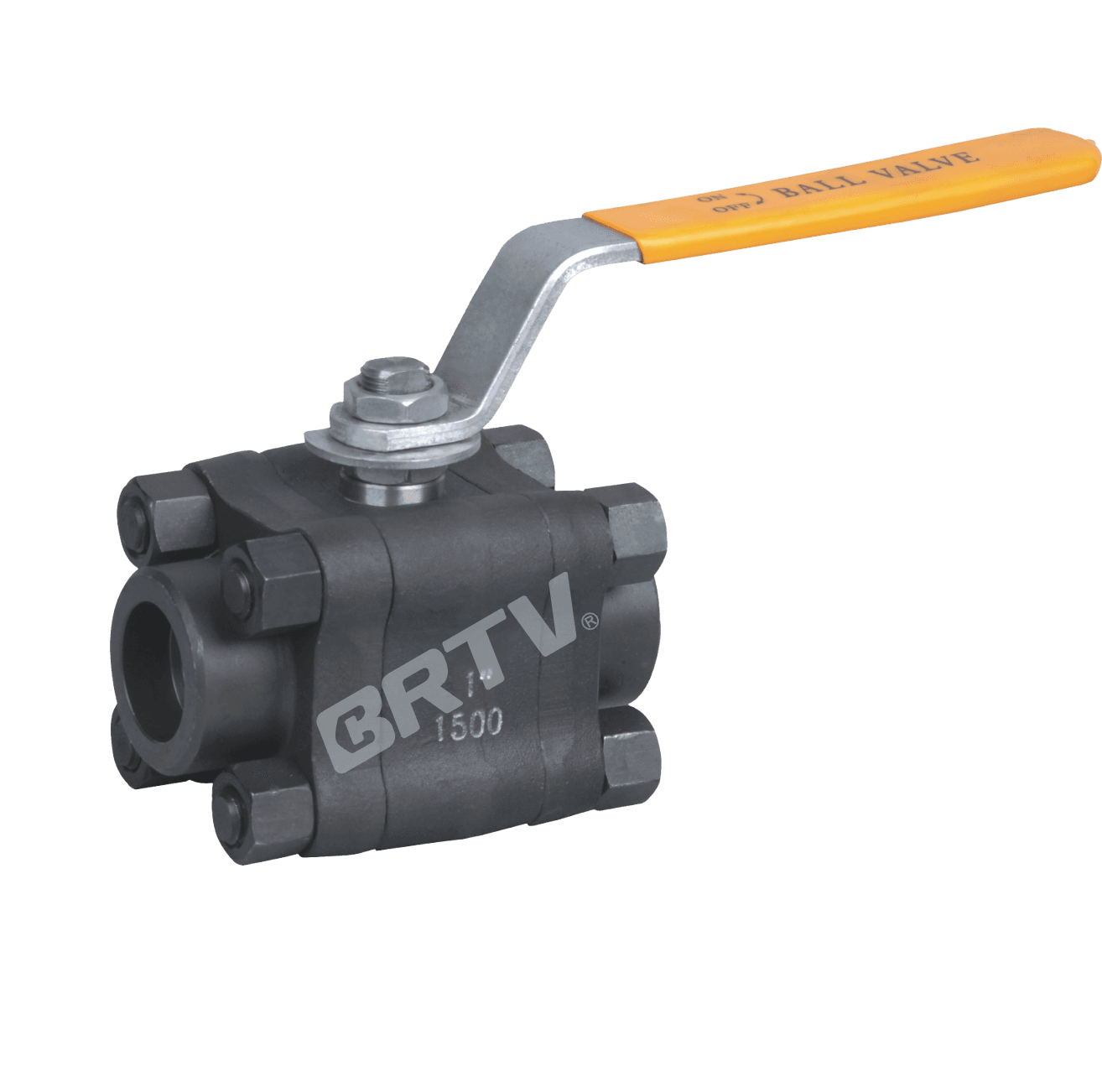

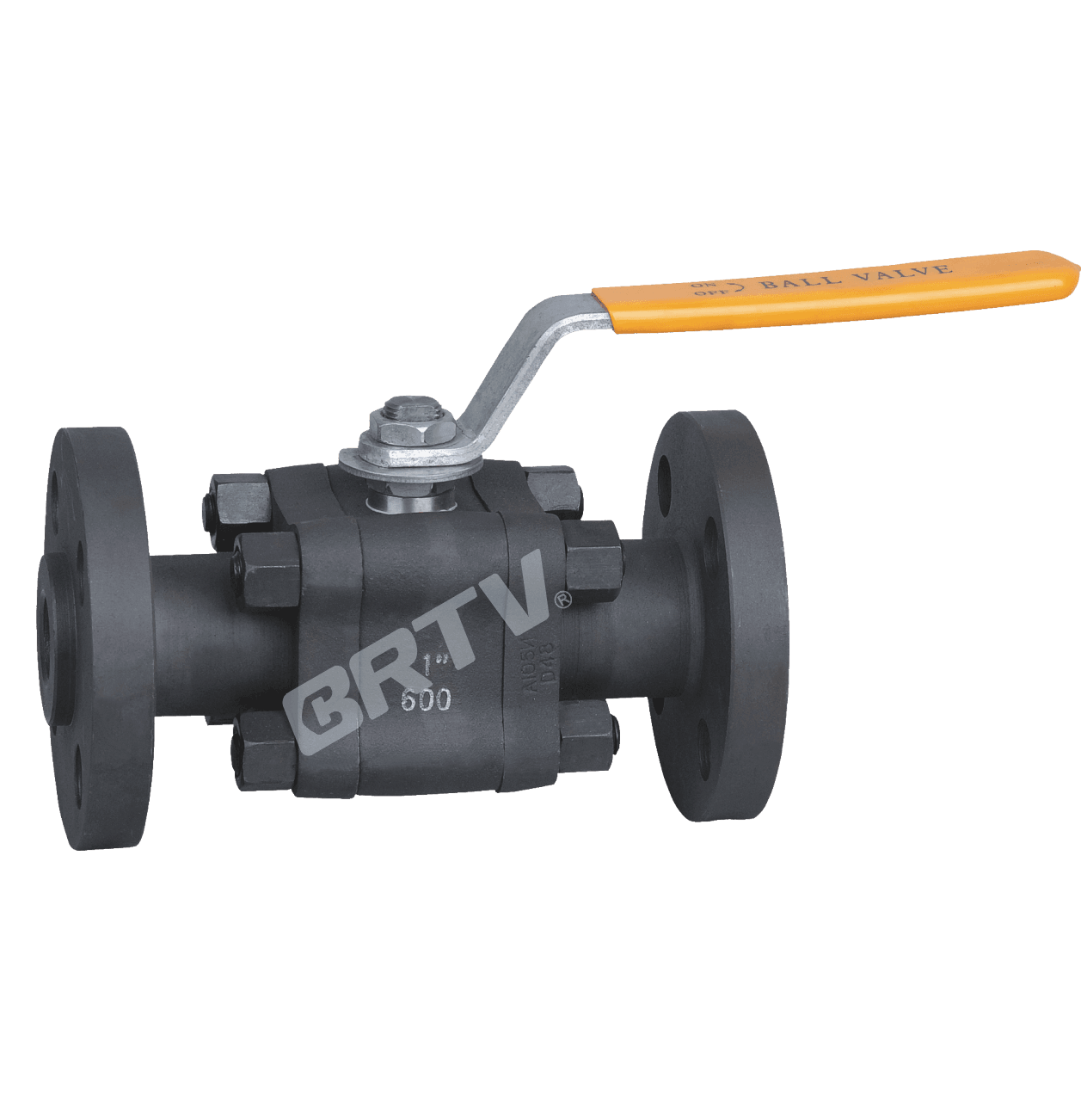

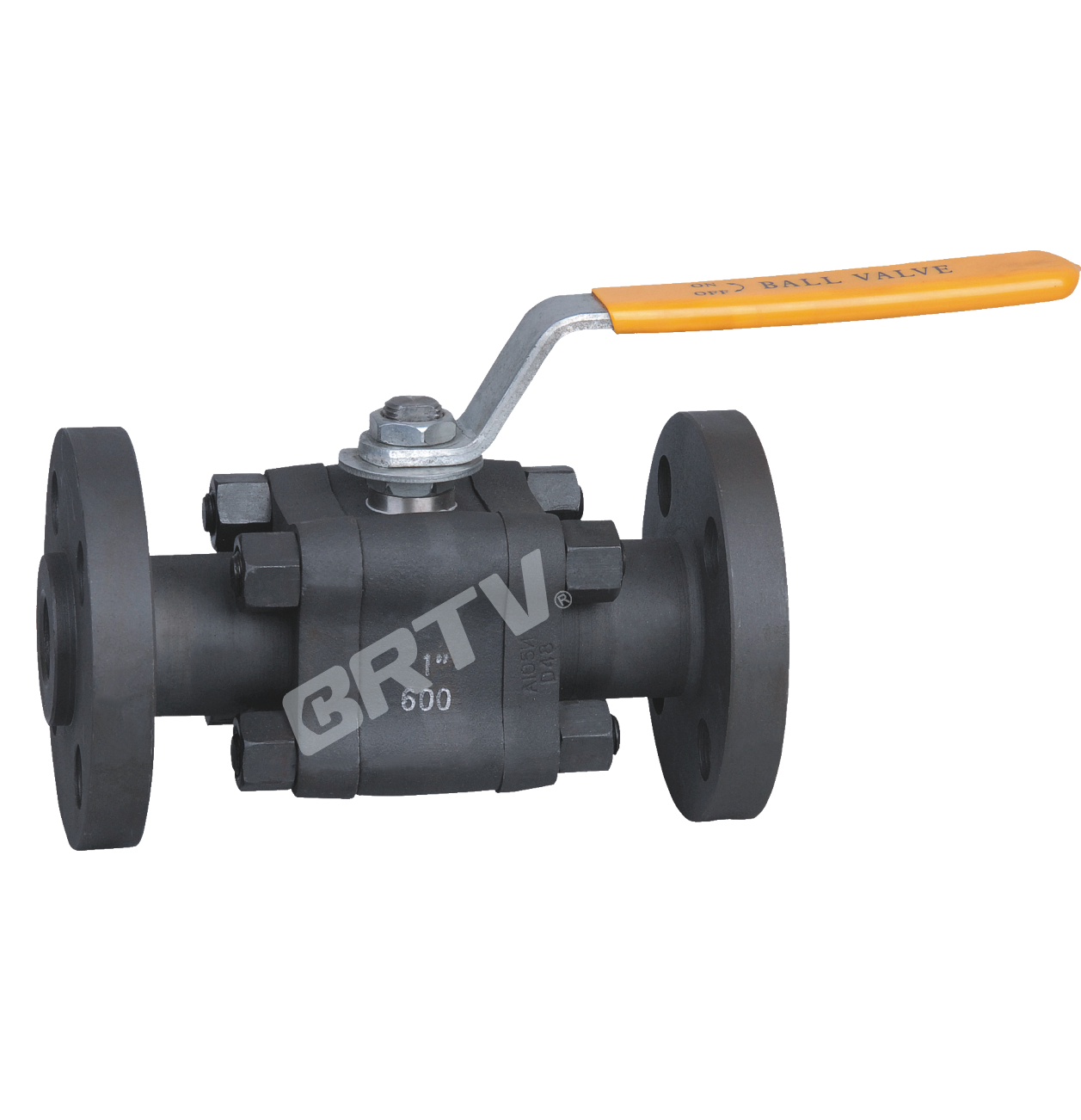

Forged Steel Ball Valve are trusted by many customers because of its reasonable structures small space-occupation and good sealing performance
• Reduced or full port;
• Construction: Floating ball;
• Gasket: PTFE;
• Socket welding & threaded ends;
• Sealing material: Determined according to customer requirements;
• Body material: A105, LF2, F304, F316, F304L, F316;
• Socket welding standards: Determined according to customer requirements;
• Thread standard: Determined according to customer requirements;
• Valve inspection and test: API 598;
• Design & manufacture: API608, API6D;
| Item | Description | 900LB | 1500LB |
|---|---|---|---|
| Test pressure (MPa) | Strength test | 22.7 | 37.8 |
| Seat test | 16.7 | 28.1 | |
| Gas seal test | 0.6 | 0.6 | |
| Maximum operating temperature | — | Nylon < 80°C, PTFE < 150°C, PPL < 220°C | |
| Suitable medium | — | Water, oil & corrosive medium |
| No. | Part name | CS ASTM (A105N) | SS ASTM F304(L) | SS ASTM F316(L) |
|---|---|---|---|---|
| 1,2 | Body / Bonnet | ASTM A105N | A182 F304(L) | A182 F316(L) |
| 3 | Bolt | A193 B7 (plated) | A193 B8 | A193 B8M |
| 4 | Nut | A194 2H (plated) | A194 8 | A194 8M |
| 5,8 | Seal ring/Gasket | RTFE + Cu / Nylon1010 / PPL | ||
| 6 | Ball Body | A182 F304 | A182 F304(L) | A182 F316(L) |
| 7 | Stem | A182 F410 | A182 F304(L) | A182 F316(L) |
| 9,10 | Stem Packing | RTFE + Cu / Nylon1010 / PPL | ||
| 11 | Gland | A182 F410 | A182 F304(L) | A182 F316(L) |
| 12 | Spring | 65Mn | 65Mn | 65Mn |
| 13 | Nut | A194 B7 (plated) | A194 8 | A194 8 |
| 14 | Wrench | Q235A | Q235A | Q235A |
| 15 | Pin | A194 B7 (plated) | F316 | F316 |

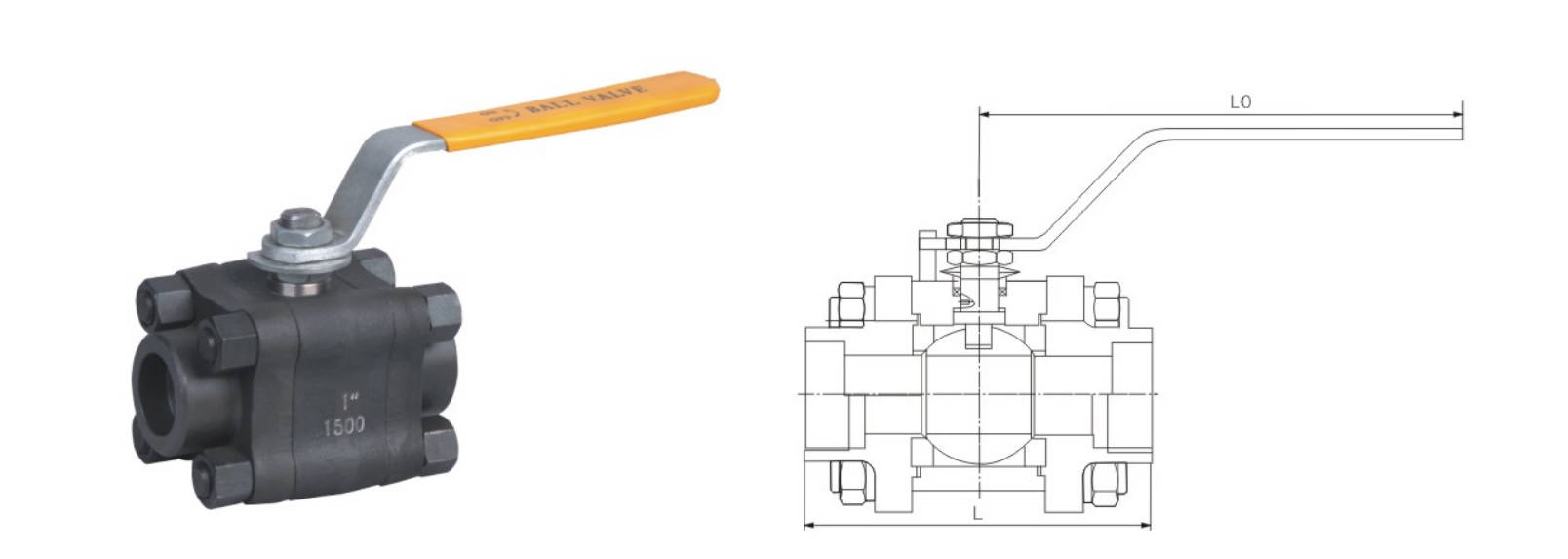

3PC, 800LB Ball Valve
| Dimension | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|---|---|---|---|---|---|---|
| L | 92 | 111 | 127 | 140 | 152 | 178 |
| S | 21.8 | 27.1 | 33.8 | 42.8 | 48.7 | 61.1 |
| B | 9.6 | 12.7 | 12.7 | 12.7 | 12.7 | 15.9 |
| L0 | 123 | 160 | 160 | 195 | 195 | 250 |
| NPT | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |

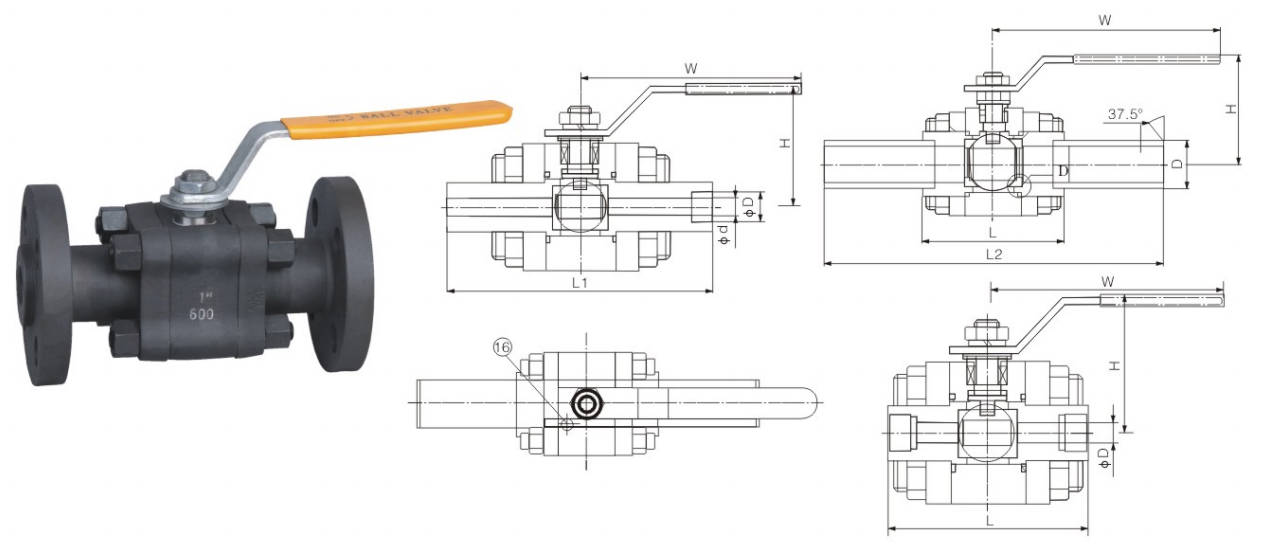

3PC, 1500LB Ball Valve
| NPS | d (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | H (mm) | W (mm) |
|---|---|---|---|---|---|---|---|
| 1/2 | 12.7 | 22 | 100 | 130 | 200 | 65 | 150 |
| 3/4 | 17.5 | 28 | 120 | 130 | 220 | 72 | 150 |
| 1 | 22 | 34 | 135 | 130 | 235 | 80 | 170 |
| 1-1/4 | 28.5 | 43 | 165 | 180 | 265 | 80 | 170 |
| 1-1/2 | 38 | 49 | 200 | 210 | 300 | 105 | 240 |
| 2 | 47.5 | 61 | 220 | 250 | 320 | 114 | 240 |
Step 1: Order and Design
Confirm customer requirements, including size, pressure rating, material, end connection, and applicable standards.
For the forged steel ball valve, technical drawings and production plans are prepared before manufacturing starts.
Step 2: Forging & Casting
The main body and key pressure-containing parts are produced by forging to ensure higher strength and better internal structure.
For a forged steel ball valve, forged raw material is selected, heated, and formed, then rough cleaned for the next process.
Step 3: Machining
All forged parts are machined by CNC equipment, including body cavity, flange ends, stem hole, ball, and seat pocket.
This step is critical for the forged steel ball valve to ensure dimensional accuracy, sealing performance, and smooth operation.
Step 4: Assembly
After machining and inspection, all components are assembled, including body, ball, stem, seat, gasket, bolts, and handle.
Each forged steel ball valve is assembled according to standard procedures to guarantee reliable performance.
Step 5: Testing & Quality Assurance
Finished valves undergo pressure test, shell test, seat leakage test, and operation test according to international standards.
Every forged steel ball valve must pass quality inspection before delivery.
Step 6: Painting and Finishing
After testing, the valve surface is cleaned, painted or anti-rust coated, marked, packed, and prepared for shipment.
These valves are widely used in:
Oil and Gas
Chemical Processing
Power Plants
Water Treatment
Metallurgy and Mining
Agriculture and Irrigation
Superior Quality
Our valves are manufactured using premium materials and undergo rigorous quality testing to ensure reliable performance in demanding industrial applications.
Advanced Technology
Equipped with state-of-the-art CNC machining centers and precision manufacturing equipment, we deliver valves with exceptional accuracy and consistency.
Competitive Pricing
Through optimized manufacturing processes and bulk material procurement, we offer high-quality valves at competitive prices without compromising on quality.
Expert Support
Our experienced technical team provides comprehensive support from product selection to after-sales service, ensuring optimal valve performance for your specific application.
