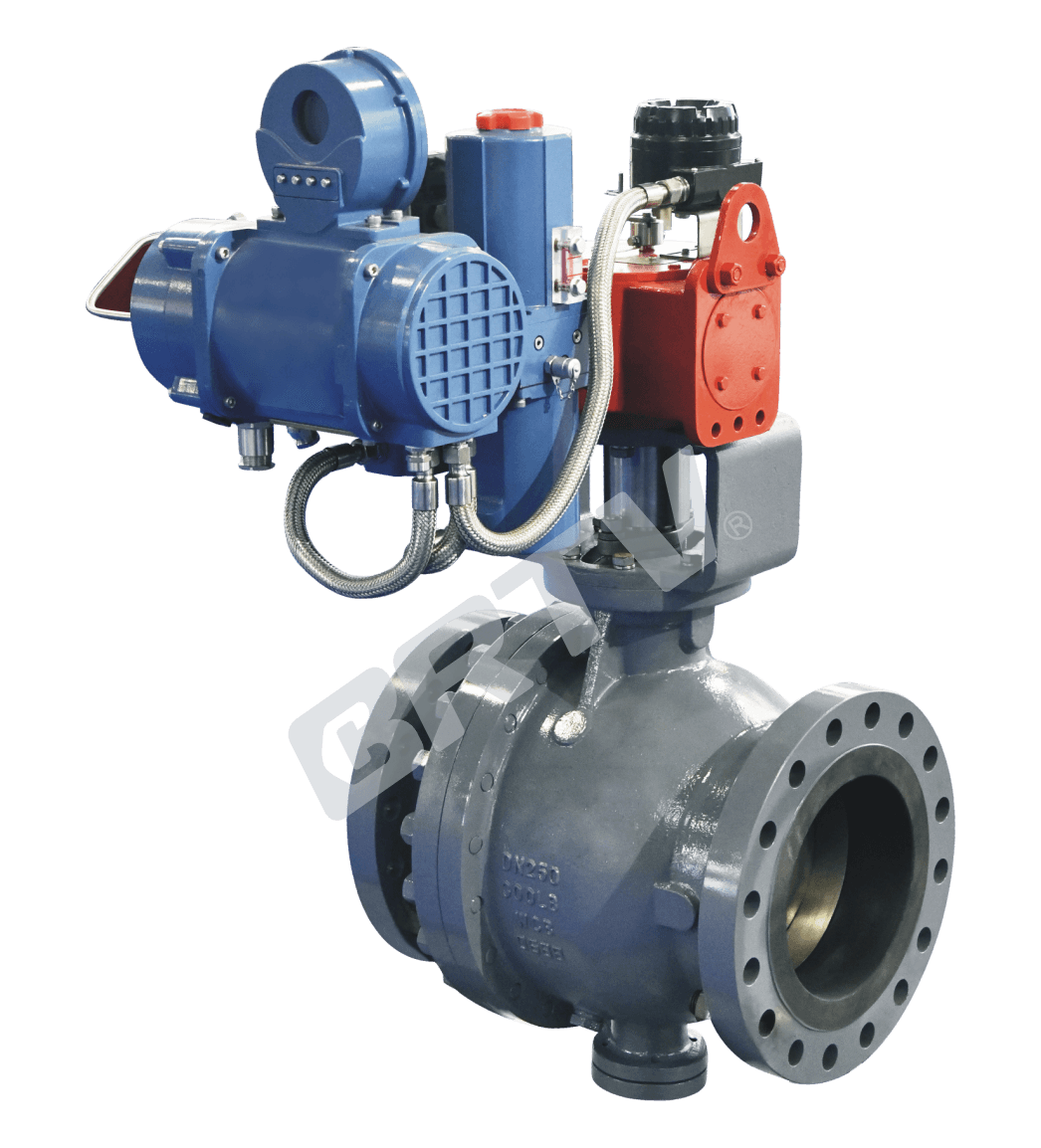

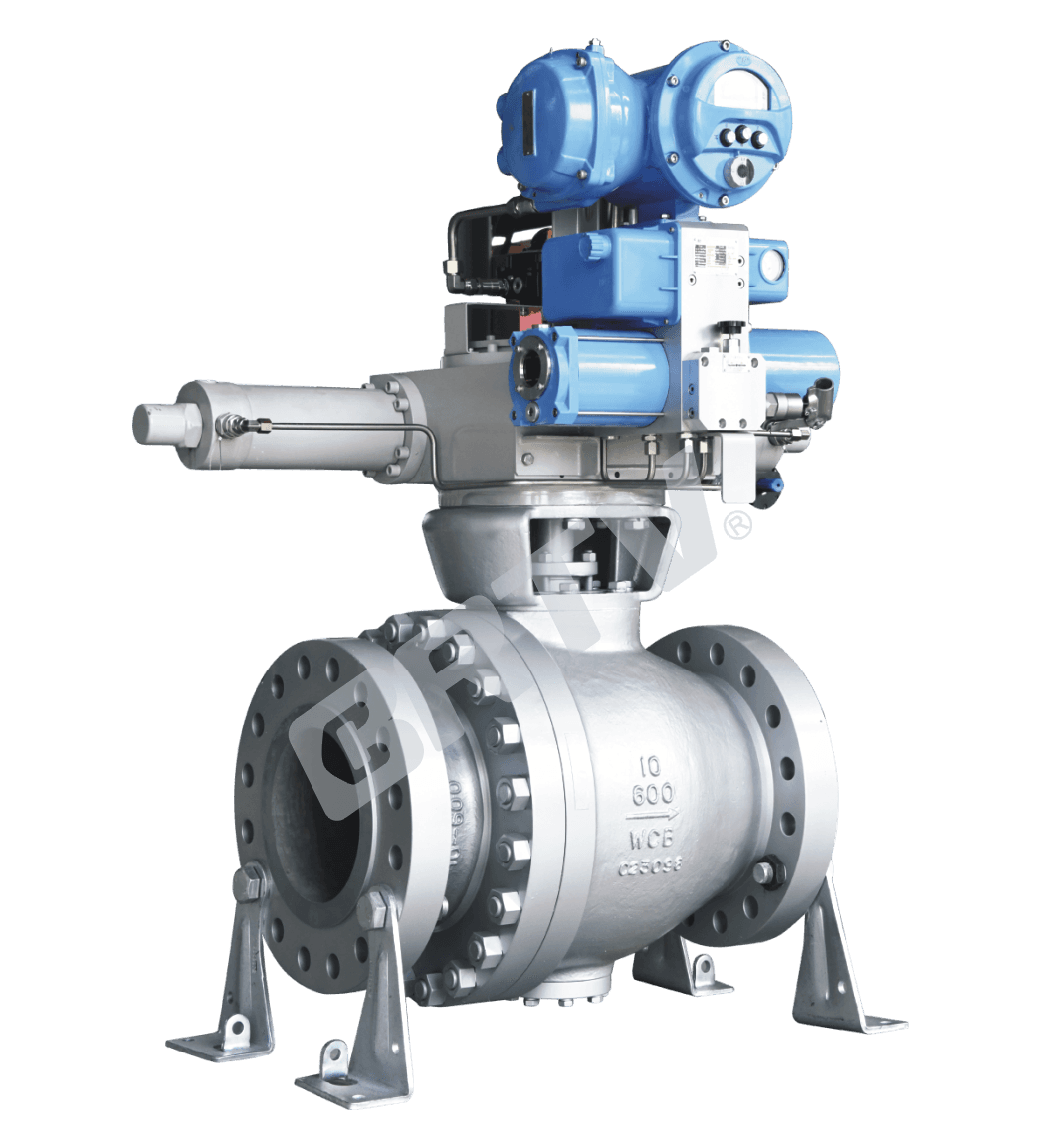

Fixed Type Ball Valve

1. Fixed type Ball Valve of GB Standard

Technique Standard

Design Basis		GB Standard
Design Standard		GB/T 12237
Face To Face Dimension	Flange Connecting	GB/T 12221
Connecting Flange Size		GB/T 9113, JB/T 79
Test & Inspection		GB/T 13927, JB/T 9092

Form of Main Parts Materials

Name of Parts	C	P	R
Right Valve	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Screw	35	1Cr18Ni9Ti	1Cr18Ni9Ti
Spring	60Si2Mn	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Seat	25 □ 1Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Sealing Ring	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy
O-ring	Rubber, Viton	Rubber, Viton	Rubber, Viton
Gasket	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad
Flange	WCB	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Gasket	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Stem	1Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Ball	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Key	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti
Stem	35	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Bushing	1Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Bushing	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Packing	PTFE, Flexible Graphite	PTFE, Flexible Graphite	PTFE, Flexible Graphite
Gland	WCB	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Connecting Set	35	35	1Cr18Ni9Ti
Yoke	WCB	WCB	1Cr18Ni9Ti
Body	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Pneumatic Device	AT Series, AW Series, BW Series	AT Series, AW Series, BW Series	AT Series, AW Series, BW Series

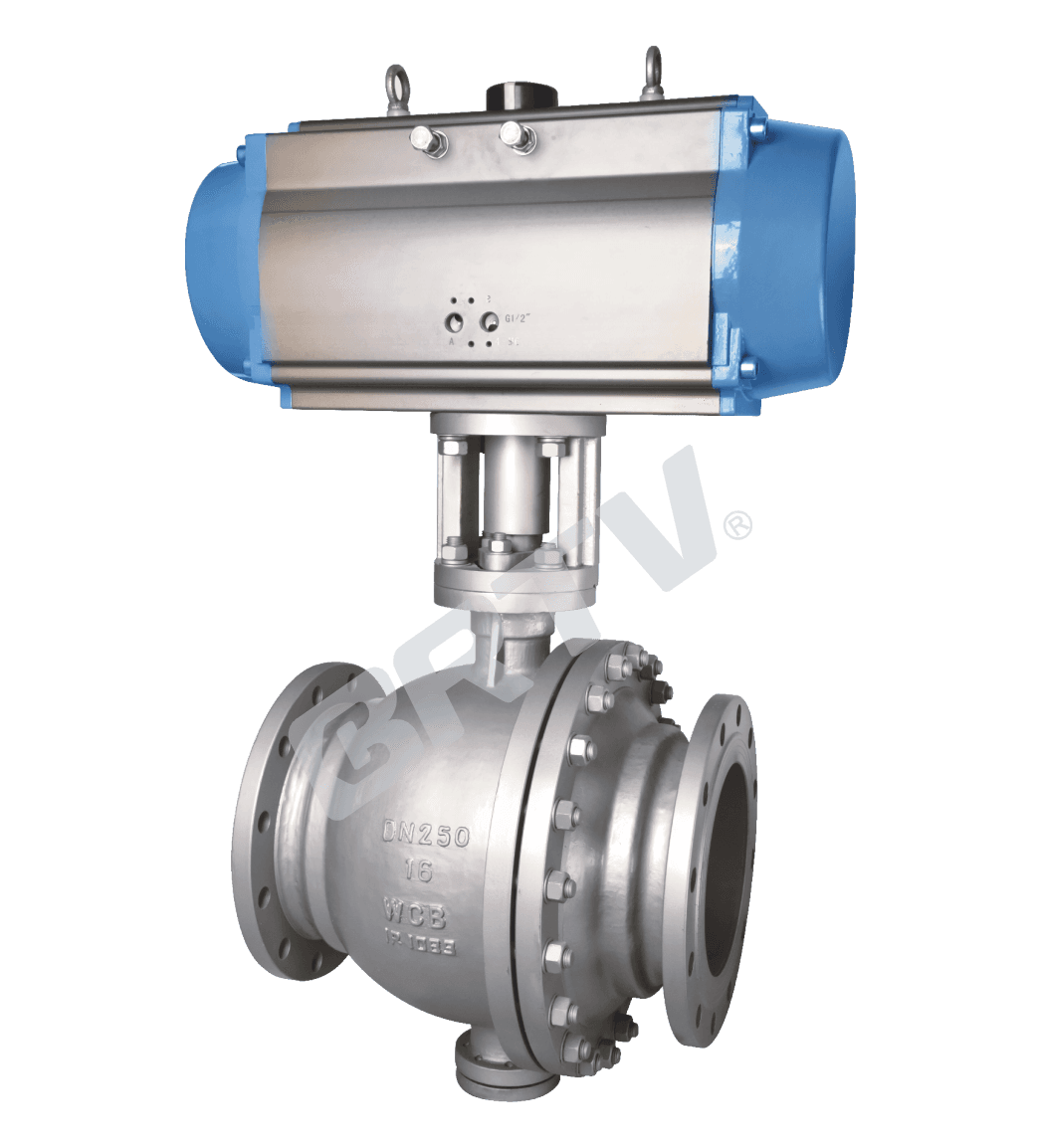

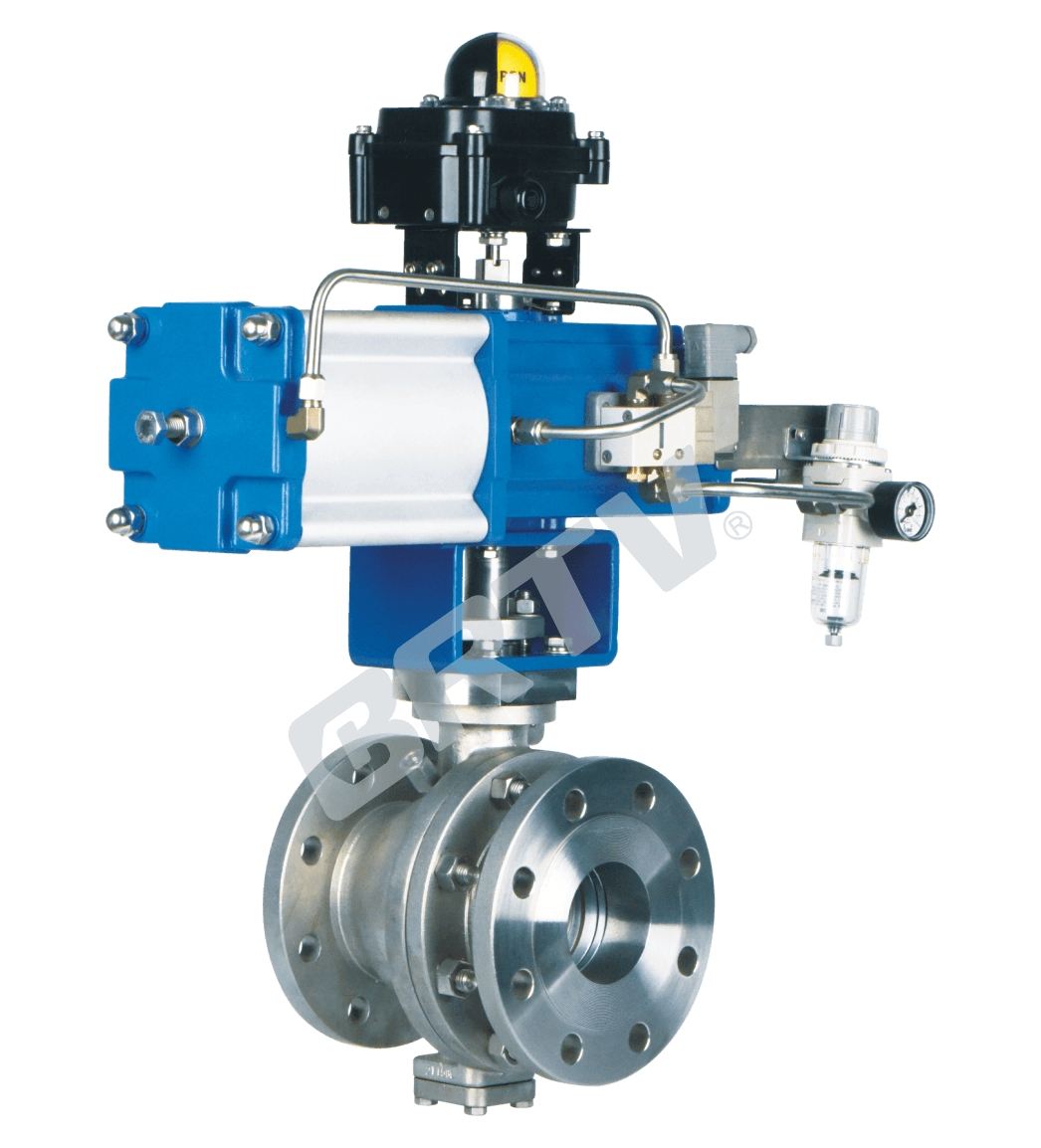

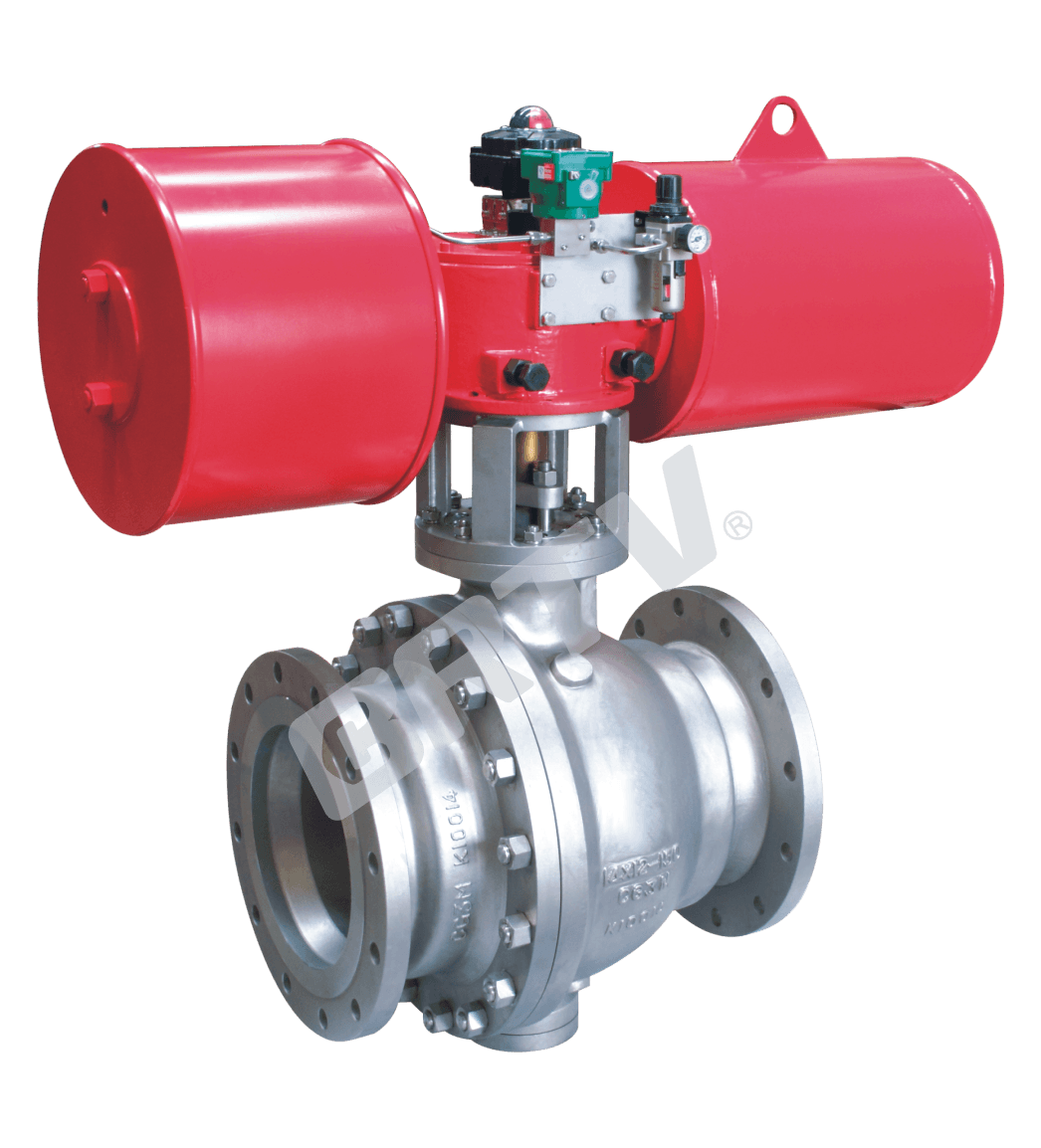

Fixed Type Pneumatic Ball Valve Standard Specification

Model	ZTQ647F (N, P, H, Y)
Bore	DN25 ~ 600 mm
Pressure	1.6, 2.5, 4.0, 6.4 MPa; 150Lb, 300Lb, 600Lb; 10K, 20K
Structure	Fixed
Dimension Standard	GB Standard, American Standard, Japanese Standard
Body Material	Carbon Steel (WCB), Stainless Steel (CF8, CF8M, CF3, CF3M)
Seat Material	PTFE (F), PPL (P), Nylon (N), Hard Alloy (H, Y)
Mode of Action	Double-acting / Single-acting (spring return) pneumatic actuator
Control	Switch Type, Adjust Type, Intelligent
Selection of Accessories	Solenoid Valve, Locator, Limit Switch, F.R.L. Combination Unit, Manual Device

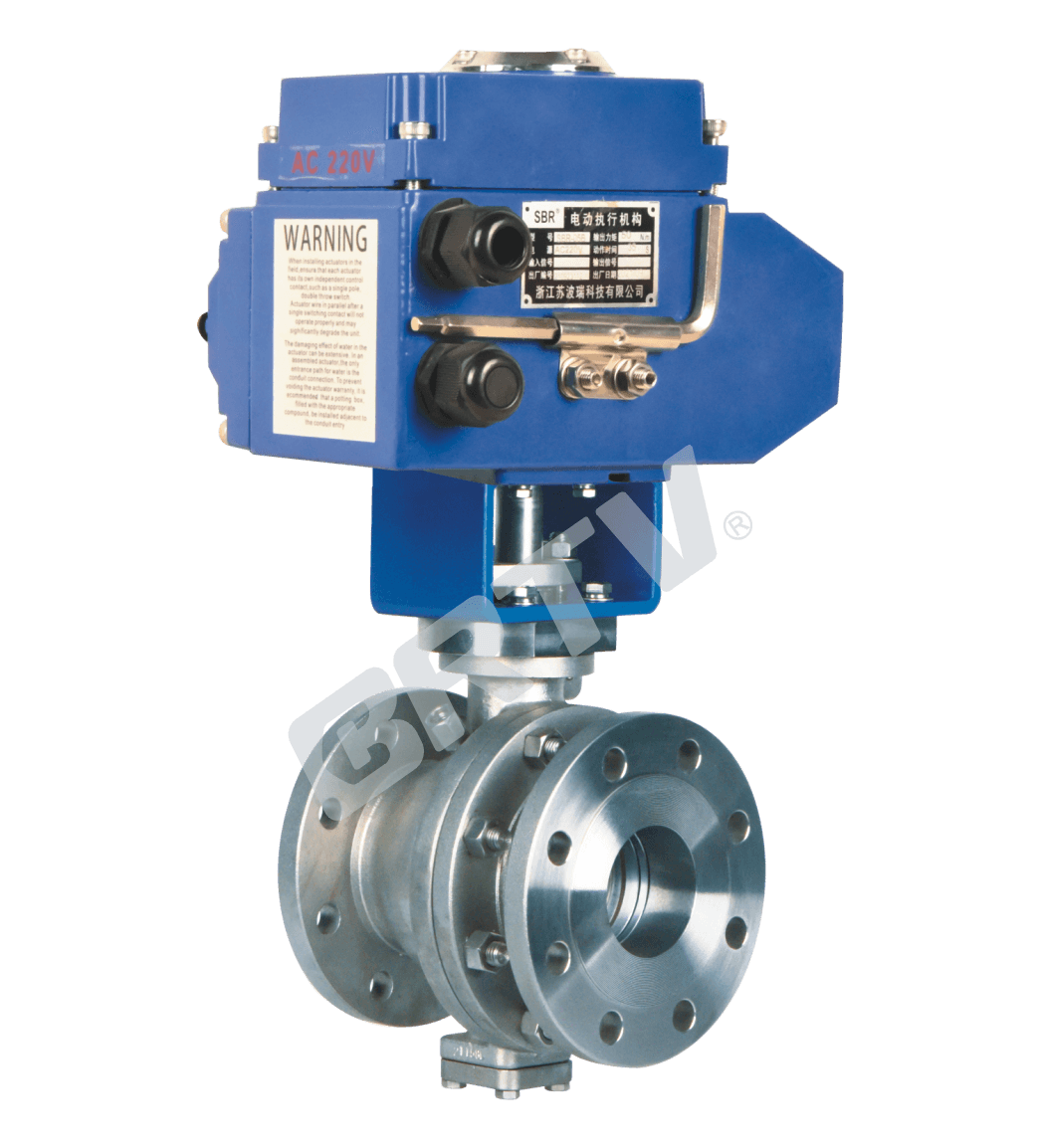

Fixed Type Electric Ball Valve Standard Specification

Model	ZTQ947F (N, P, H, Y)
Bore	DN25 ~ 600 mm
Pressure	1.6, 2.5, 4.0, 6.4 MPa; 150Lb, 300Lb, 600Lb; 10K, 20K
Structure	Fixed
Dimension Standard	GB Standard, American Standard, Japanese Standard
Body Material	Carbon Steel (WCB), Stainless Steel (CF8, CF8M, F3, CF3M)
Seat Material	PTFE (F), PPL (P), Nylon (N), Hard Alloy (H, Y)
Mode of Action	Power on type, Power off type
Control	Switch Type, Adjust Type, Intelligent
Selection of Accessories	Stroke Switch, Analog Quantity Feedback Module, Electric Control Box

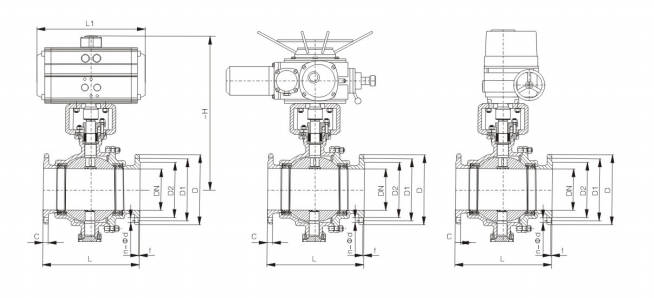

Fixed type Ball Valve of GB Standard

Main Outline and Connecting Flange Size

ZTQ647F(N/P/H/Y)-PN16(1.6MPa)

DN	L	L1	~H	D	D1	D2	C	f	n-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	216	209/275	323/348	160	125	100	16	3	4-Φ18	AT083DR/AT105SC	ZT-10
65	246	242/275	363/388	180	145	120	18	3	4-Φ18	AT092DR/AT105SC	ZT-15
80	283	275/332	408/430	195	160	135	20	3	8-Φ18	AT105DR/AT125SC	ZT-20
100	305	332/450	470/527	215	180	155	20	3	8-Φ18	AT125DR/AT160SC	ZT-50
125	356	385/507	537/625	245	210	185	22	3	8-Φ18	AT140DR/AT190SC	ZT-100
150	394	450/562	577/655	280	240	210	24	3	8-Φ23	AT160DR/AT210SC	ZT-100
200	457	562/646	695/730	335	295	265	26	3	12-Φ23	AT210DR/AT240SC	ZT-200
250	533	646/722	762/792	405	355	320	30	3	12-Φ25	AT240DR/AT270SC	ZMQ-300
300	610	1180	808	460	410	375	30	4	12-Φ25	AT300DR/AT350SC	ZMQ-400
350	686	1180	916	520	470	435	34	4	16-Φ25	AT300DR/AT350SC	ZMQ-500
400	762	1320	970	580	525	485	36	4	16-Φ30	AT350DR/AT400SC	ZDQ-600
500	914	1430	1088	705	650	608	44	4	20-Φ34	AT400DR/AW35S	ZDQ-800

ZTQ647F(N/P/H/Y)-PN25(2.5MPa)

DN	L	L1	~H	D	D1	D2	C	f	n-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	216	242/332	333/370	160	125	100	20	3	4-Φ18	AT092DR/AT125SC	ZT-10
65	241	275/385	388/442	180	145	120	22	3	8-Φ18	AT105DR/AT140SC	ZT-15
80	283	332/450	430/472	195	160	135	22	3	8-Φ18	AT125DR/AT160SC	ZT-20
100	305	385/507	507/575	230	190	160	24	3	8-Φ23	AT140DR/AT190SC	ZT-50
125	381	450/562	562/630	270	220	188	28	3	8-Φ25	AT160DR/AT210SC	ZT-100
150	403	507/646	640/700	300	250	218	30	3	8-Φ25	AT190DR/AT240SC	ZT-100
200	502	562/646	705/740	360	310	278	34	3	8-Φ25	AT210DR/AT240SC	ZT-200
250	568	646/722	772/802	425	370	332	36	3	12-Φ30	AT240DR/AT270SC	ZMQ-300
300	648	1180	821	485	430	390	40	4	16-Φ30	AT300DR/AT350SC	ZMQ-400
350	762	1180	934	550	490	448	44	4	16-Φ34	AT300DR/AT350SC	ZMQ-500
400	838	1320	990	610	550	505	48	4	16-Φ34	AT350DR/AT400SC	ZDQ-600
500	991	1430	1006	730	660	610	52	4	20-Φ36	AT400DR/AW35S	ZDQ-800

ZTQ647F(N/P/H/Y)-PN40(4.0MPa)

DN	L	L1	~H	D	D1	D2	C	f	N-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	216	242/275	358/397	160	125	100	20	3	4-Φ18	AT092DR/AT105SC	ZT-20
65	241	275/332	410/452	180	145	120	22	3	8-Φ18	AT105DR/AT125SC	ZT-20
80	283	332/385	462/530	195	160	135	24	3	8-Φ18	AT125DR/AT140SC	ZT-50
100	305	385/450	547/615	230	190	160	24	3	8-Φ23	AT140DR/AT160SC	ZT-100
125	381	450/507	635/695	270	220	188	26	3	8-Φ25	AT160DR/AT190SC	ZT-100
150	403	507/562	700/735	300	250	218	28	3	8-Φ25	AT190DR/AT210SC	ZT-100
200	502	646/722	748/778	375	320	282	34	3	12-Φ30	AT240DR/AT270SC	ZT-200
250	568	722	803	445	385	345	42	3	12-Φ34	AT270DR/AT300SC	ZMQ-400
300	648	1320	914	510	450	408	46	4	16-Φ34	AT350DR/AT400SC	ZMQ-500
350	762	1320	970	570	510	465	52	4	16-Φ34	AT350DR/AT400SC	ZDQ-600
400	838	1430	1060	655	585	535	58	4	16-Φ41	AT400DR/AW35S	ZDQ-800
500	991	1950	1228	755	670	612	60	4	20-Φ42	AW35/AW40S	ZDQ-1600

2. Fixed type Ball Valve of ANSI Standard

Technique Standard

Design Basis	API, ANSI Standard
Design Standard	API 6D, ANSI B16.34
Face to Face Dimension	API 6D, ANSI B16.10
Connecting Flange Size	ANSI B16.5
Test & Inspection	API 6D, API 598

Form of Main Parts Materials

Name of Parts	C	P	R
Right Valve	A216-WCB	A351-CF8	A351-CF8M
Screw	A193-B7	A276-304	A276-316
Nut	A194-2H	A276-304	A276-316
Spring	YB/T5104 60Si2Mo	YBD(T)11 1Cr18Ni9	YBD(T)11 0Cr18Ni12Mo2
Seat	A182-A105	A276-304	A276-316
Sealing Ring	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy
O-ring	Rubber, Viton	Rubber, Viton	Rubber, Viton
Gasket	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad
Flange	A216-WCB	A351-CF8	A351-CF8
Gasket	A276-304	A276-304	A276-316
Stem	A276-410	A276-304	A276-316
Bushing	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Ball	A182-F304	A182-F304	A182-F316
Key	AISI C1045	A276-304	A276-316
Stem	A276-410	A276-304	A276-316
Bushing	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Packing	PTFE, Flexible Graphite	PTFE, Flexible Graphite	PTFE, Flexible Graphite
Gland	A216-WCB	A276-304	A276-316
Connecting Set	A182-A105	A276-304	A276-304
Yoke	A216-WCB	A276-304	A276-304
Body	A216-WCB	A351-CF8	A351-CF8
Pneumatic Device	AT Series, AW Series	AT Series, AW Series	AT Series, AW Series

Fixed type Ball Valve of ANSI Standard

Main Outline and Connecting Flange Size

ZTQ647F(N/P/H/Y)-Class 150

DN	in	L	L1	~H	D	D1	D2	C	f	n-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	2	178	209/275	320/345	152	120.5	92	19	1.6	4-Φ25	AT083DR/AT105SC	ZT-15
65	2 1/2	191	242/275	365/390	178	139.5	105	22.5	1.6	4-Φ29	AT092DR/AT105SC	ZT-20
80	3	203	275/332	403/425	190	152.5	127	24	1.6	4-Φ30	AT105DR/AT125SC	ZT-20
100	4	229	332/450	475/532	229	190.5	157	24	1.6	8-Φ33	AT125DR/AT160SC	ZT-50
125	5	356	385/507	539/627	254	216	186	24	1.6	8-Φ36	AT140DR/AT190SC	ZT-100
150	6	394	450/562	574/652	279	241.5	216	25.5	1.6	8-Φ40	AT160DR/AT210SC	ZT-100
200	8	457	562/646	693/728	343	298.5	270	29	1.6	8-Φ44	AT210DR/AT240SC	ZT-200
250	10	533	646/722	762/792	406	362	324	30.5	1.6	12-Φ25	AT240DR/AT270SC	ZMQ-300
300	12	610	1180	820	483	432	381	32	1.6	12-Φ25	AT300DR/AT350SC	ZMQ-400
350	14	686	1180	923	533	476	413	35	1.6	12-Φ29	AT300DR/AT350SC	ZMQ-500
400	16	762	1320	979	597	540	470	37	1.6	16-Φ29	AT350DR/AT400SC	ZDQ-600
500	20	914	1430	1079	699	635	584	43	1.6	20-Φ32	AT400SC/AW35S	ZDQ-800

ZTQ647F(N/P/H/Y) -Class 300

DN	in	L	L1	~H	D	D1	D2	C	f	n-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	2	216	242/332	336/373	165	127	92	22.5	1.6	4-Φ19	AT092DR/AT125SC	ZT-20
65	2 1/2	241	275/385	395/449	190	149	105	25.5	1.6	8-Φ19	AT105DR/AT140SC	ZT-50
80	3	283	332/450	435/477	210	168.5	127	29	1.6	8-Φ22	AT125DR/AT160SC	ZT-100
100	4	305	385/507	504/572	254	200	157	32	1.6	8-Φ22	AT140DR/AT190SC	ZT-100
125	5	381	450/562	566/634	279	235	186	35	1.6	8-Φ26	AT160DR/AT210SC	ZT-100
150	6	403	507/646	566/634	318	270	216	37	1.6	12-Φ26	AT190DR/AT240SC	ZT-100
200	8	502	562/646	715/750	381	330	270	41.5	1.6	12-Φ29	AT210DR/AT240SC	ZT-200
250	10	568	646/722	782/812	444	387.5	324	48	1.6	16-Φ29	AT240DR/AT270SC	ZMQ-300
300	12	648	1162	839	521	451	381	51	1.6	12-Φ32	AT300DR/AT350SC	ZMQ-400
350	14	762	1380	984	584	514.5	413	54	1.6	20-Φ32	AT350DR/AT400SC	ZMQ-500
400	16	838	1860	1004	648	571.5	470	57.5	1.6	20-Φ35	AT400DR/AW35S	ZDQ-600
500	20	991	1860	1118	775	686	584	63.5	1.6	24-Φ35	AW35/AW40S	ZDQ-800

ZTQ647F(N/P/H/Y)-Class 600

DN	in	L	L1	~H	D	D1	D2	C	f	n-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	2	292	275/385	393/447	165	127	92	25.5	6.4	8-Φ19	AT105DR/AT140SC	ZT-50
65	2 1/2	330	332/450	432/474	190	149.5	105	29	6.4	8-Φ22	AT125DR/AT160SC	ZT-100
80	3	356	332/385	507/575	210	168.5	127	32	6.4	8-Φ22	AT140DR/AT160SC	ZT-200
100	4	432	385/507	572/640	275	216	157	38.5	6.4	8-Φ26	AT160DR/AT190SC	ZT-200
150	6	559	507/646	721/751	355	292	216	48	6.4	12-Φ26	AT190DR/AT240SC	ZMQ-250
200	8	660	646/722	787/817	420	349	270	55.5	6.4	12-Φ29	AT270DR/AT300SC	ZMQ-300
250	10	787	1180	801	510	432	324	63.5	6.4	16-Φ32	AT300DR/AT350SC	ZMQ-400
300	12	838	1180	916	560	489	381	67	6.4	16-Φ35	AT350DR/AT400SC	ZMQ-500
350	14	889	1320	973	605	527	413	70	6.4	20-Φ35	AT400DR/AW28S	ZDQ-600
400	16	991	1430	1055	685	603	470	76.5	6.4	20-Φ39	AW28/AW35S	ZDQ-1600
500	20	1194	1950	1228	815	724	584	89	6.4	24-Φ42	AW35/AT40S	ZDQ-2000

2. Fixed type Ball Valve of JIS Standard

Technique Standard

Design Basis	JIS Standard
Design Standard	BS 5351
Face to Face Dimension	JIS B2002
Connecting Flange Size	JIS B2212, B2213, B2214
Test & Inspection	JIS B2003

Form of Main Parts Materials

Name of Parts	C	P	R
Right Valve	SCPH2	SCS13	SCS14
Screw	S35C	SUS304	SUS304
Nut	S35C	SUS304	SUS304
Spring	60Si2Mo	SUS302	SUS316
Seat	SUS410	SUS304	SUS316
Sealing Ring	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy	PTFE, Nylon, PPL, Hard Alloy
O-ring	Rubber, Viton	Rubber, Viton	Rubber, Viton
Gasket	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad	PTFE, Graphite metal composite pad
Flange	SCPH2	SCS13	SCS13
Gasket	SUS304	SUS304	SUS316
Stem	S35410	SUS304	SUS316
Bushing	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Ball	SUS304	SUS304	SUS316
Key	S35C	SUS304	SUS316
Stem	SUS410	SUS304	SUS316
Bushing	PTFE, Composite bearings	PTFE, Composite bearings	PTFE, Composite bearings
Packing	PTFE, Flexible Graphite	PTFE, Flexible Graphite	PTFE, Flexible Graphite
Gland	SCPH2	SCS13	SUS316
Connecting Set	S35C	SUS304	SUS304
Yoke	SCPH2	SCS13	SCS13
Body	SCPH2	SCS13	SCS13
Pneumatic Device	AT Series, AW Series	AT Series, AW Series	AT Series, AW Series

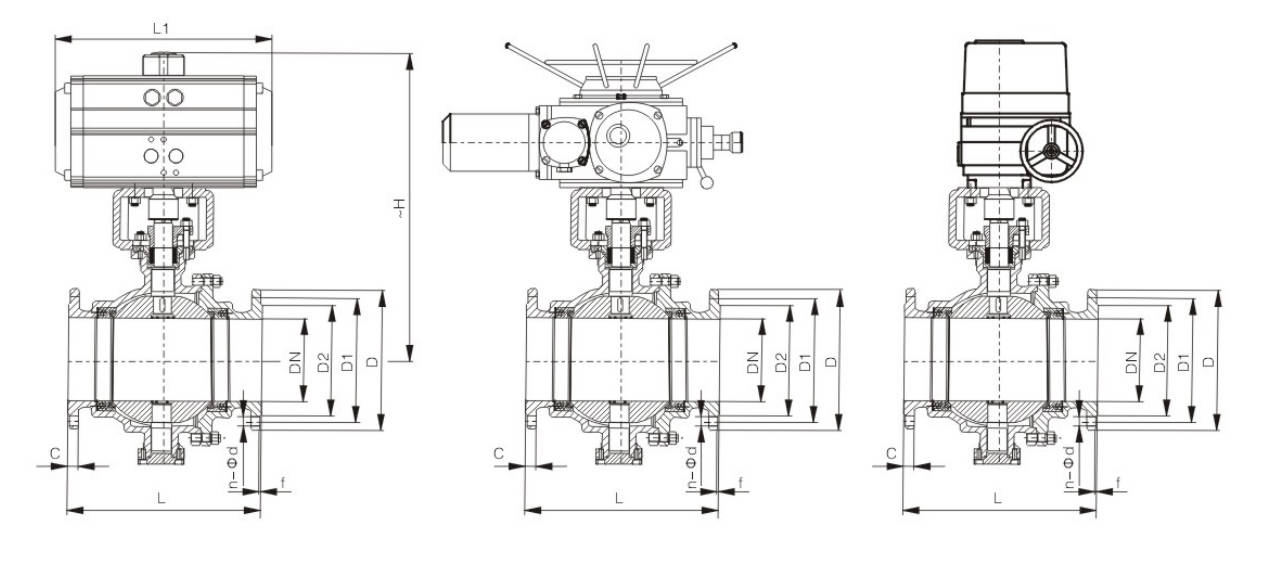

Fixed type Ball Valve of JIS Standard

Main Outline and Connecting Flange Size

ZTQ647F(N/P/H/Y) -10K

DN	in	L	L1	~H	D	D1	D2	C	f	N-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	2	178	209/275	319/343	155	120	100	16	2	4-Φ19	AT083DR/AT105SC	ZT-15
65	2 1/2	190	242/275	363/387	175	140	120	18	2	4-Φ19	AT092DR/AT105SC	ZT-20
80	3	203	275/332	401/423	185	150	130	18	2	8-Φ19	AT105DR/AT125SC	ZT-50
100	4	229	332/450	471/528	210	175	155	18	2	8-Φ19	AT125DR/AT160SC	ZT-50
125	5	356	385/507	537/625	250	210	185	20	2	8-Φ23	AT140DR/AT190SC	ZT-100
150	6	394	450/562	574/652	280	240	215	22	2	8-Φ23	AT160DR/AT210SC	ZT-100
200	8	457	562/646	686/722	330	290	265	22	2	12-Φ23	AT210DR/AT240SC	ZT-200
250	10	533	646/722	759/789	400	355	325	24	2	12-Φ25	AT240DR/AT270SC	ZMQ-300
300	12	610	1180	801	445	400	370	24	3	16-Φ25	AT300DR/AT350SC	ZMQ-400
350	14	686	1180	901	490	445	415	26	3	16-Φ25	AT350DR/AT400SC	ZMQ-500
400	16	762	1320	960	560	510	475	28	3	16-Φ27	AT400DR/AW28S	ZDQ-600
500	20	914	1430	1068	675	620	585	30	3	20-Φ27	AW28/AW35S	ZDQ-800

ZTQ647F(N/P/H/Y) -20K

DN	in	L	L1	~H	D	D1	D2	C	f	N-Φd	Pneumatic Actuator Model	Electric Actuator Models
50	2	216	242/332	329/366	155	120	100	18	2	8-Φ19	AT092DR/AT125SC	ZT-20
65	2 1/2	241	275/385	390/444	175	140	120	20	2	8-Φ19	AT105DR/AT140SC	ZT-20
80	3	283	332/450	430/472	200	160	135	22	2	8-Φ23	AT125DR/AT160SC	ZT-50
100	4	305	385/507	494/562	225	185	160	24	2	8-Φ23	AT140DR/AT190SC	ZT-100
125	5	381	450/562	561/629	270	225	195	26	2	8-Φ25	AT160DR/AT210SC	ZT-100
150	6	403	507/646	642/702	305	260	230	28	2	12-Φ25	AT190DR/AT240SC	ZT-100
200	8	502	562/646	700/735	350	305	275	30	2	12-Φ22	AT210DR/AT240SC	ZT-200
250	10	568	722	775/805	430	380	345	34	2	12-Φ27	AT270DR/AT300SC	ZMQ-300
300	12	648	1180	818	480	430	395	35	3	16-Φ27	AT350DR/AT400SC	ZMQ-400
350	14	762	1180	926	540	480	440	40	3	16-Φ33	AT35DR/AT400SC	ZMQ-500
400	16	838	1320	983	605	540	495	46	3	16-Φ33	AT400DR/AW35S	ZDQ-600
500	20	991	1430	1095	730	660	615	50	3	20-Φ33	AW35/AW40S	ZDQ-800

Request a Quote

1. Fixed type Ball Valve of GB Standard

Technique Standard

Form of Main Parts Materials

Fixed Type Pneumatic Ball Valve Standard Specification

Fixed Type Electric Ball Valve Standard Specification

Main Outline and Connecting Flange Size

2. Fixed type Ball Valve of ANSI Standard

Technique Standard

Form of Main Parts Materials

Main Outline and Connecting Flange Size

2. Fixed type Ball Valve of JIS Standard

Technique Standard

Form of Main Parts Materials

Main Outline and Connecting Flange Size

Related Products

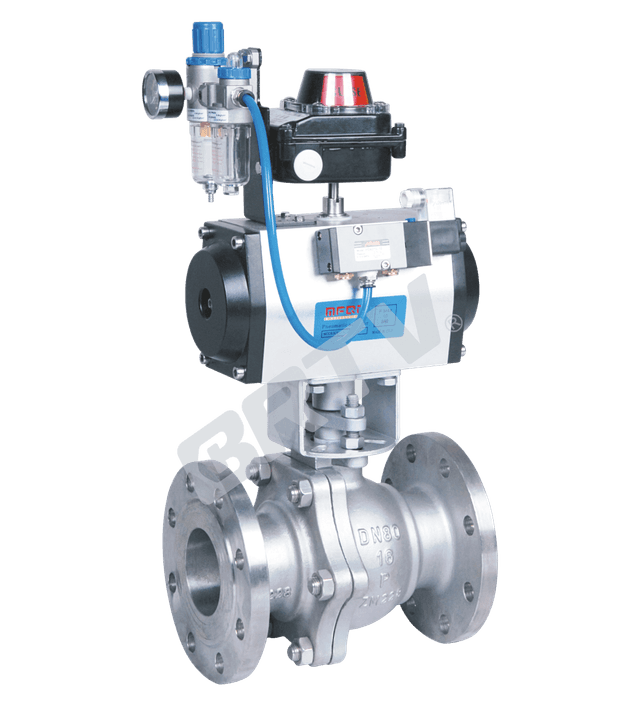

Floating Ball Valve

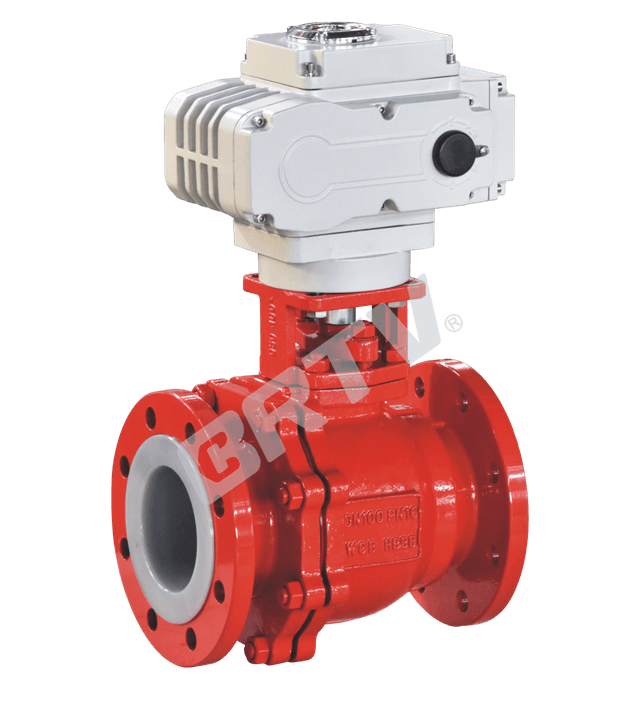

V-type Ball Valve

Flanged Ball Valve

Three way Ball Valve
